SK54L_R1_00001 - PANJIT

SK54L_R1_00001 Details

• Manufacturer Part Number:

  SK54L_R1_00001

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

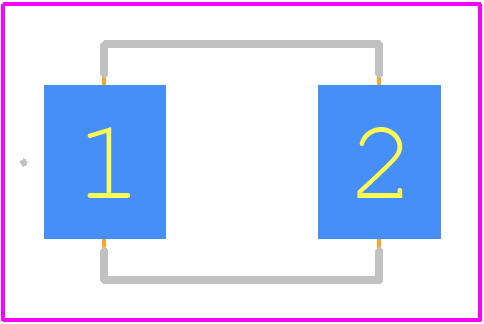

• Package Description:

  GREEN, PLASTIC, SMC, 2 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  PanJit Semiconductor

• YTEOL:

  6.12

• Additional Feature:

  FREE WHEELING DIODE, LOW POWER LOSS

• Application:

  EFFICIENCY

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  0.44 V

• JEDEC-95 Code:

  DO-214AB

• JESD-30 Code:

  R-PDSO-C2

• Non-rep Pk Forward Current-Max:

  100 A

• Number of Elements:

  1

• Number of Phases:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Rep Pk Reverse Voltage-Max:

  40 V

• Reverse Current-Max:

  500 µA

• Surface Mount:

  YES

• Technology:

  SCHOTTKY

• Terminal Form:

  C BEND

• Terminal Position:

  DUAL
