SKA20A-05 - Mean Well

Description: Isolated DC/DC Converters 9-18Vin 5Vout 400-4000mA Iso DC-DC

Download SKA20A-05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

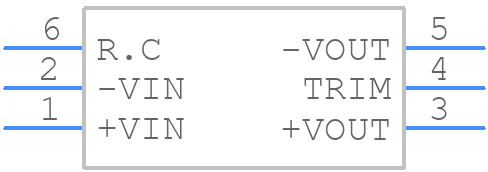

SKA20A-05 - Mean Well - PCB symbol
click to zoom
PCB Footprints

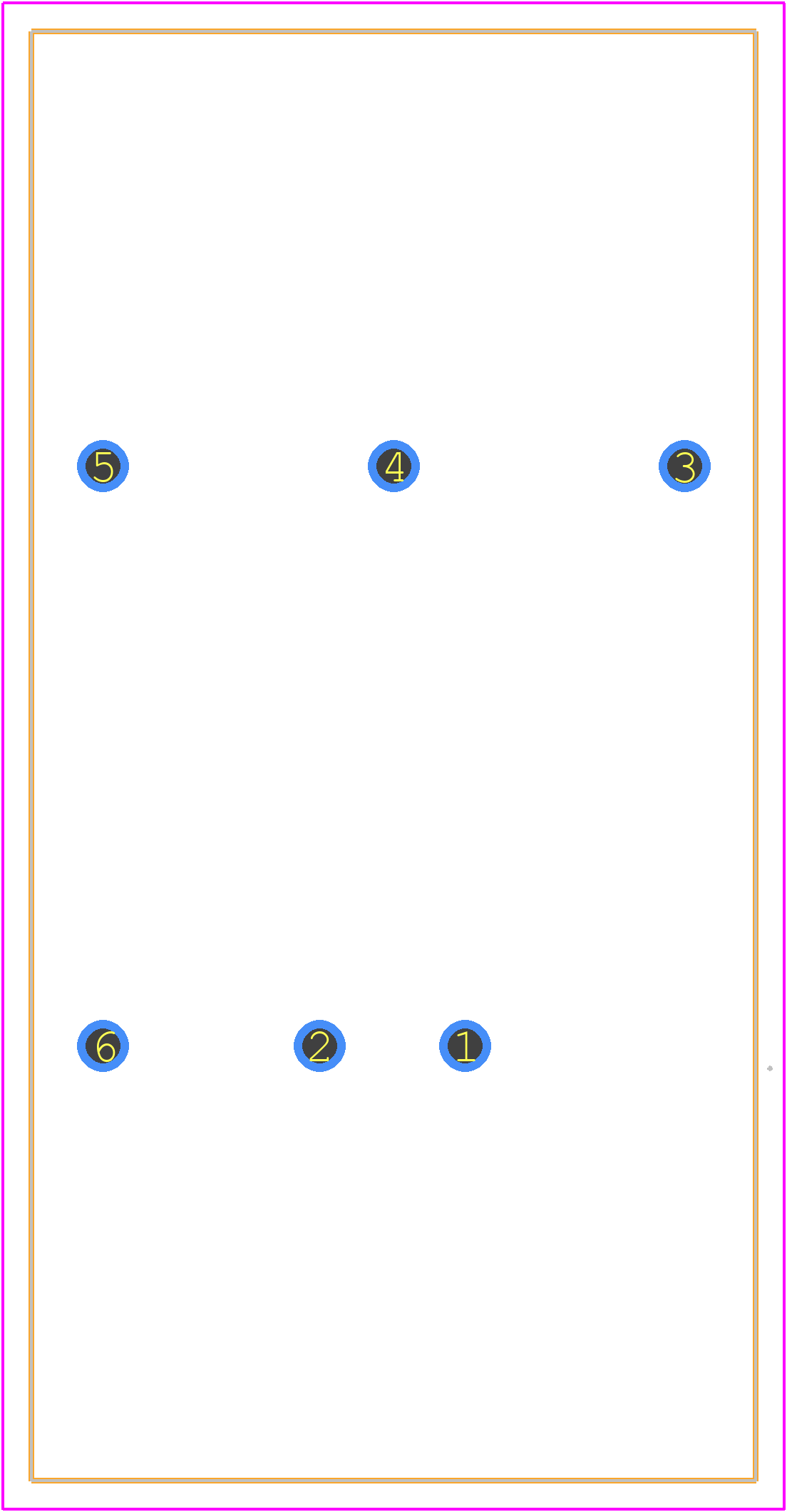

SKA20A-05 - Mean Well PCB footprint - Other - Other - SKA20A-05-1
click to zoom
3D Models
SKA20A-05 - Mean Well - 3D model - Other - SKA20A-05-1
click to zoom

SKA20A-05 Details

  • Manufacturer Part Number:

    SKA20A-05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-6

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    19 Weeks, 3 Days

  • Manufacturer:

    Mean Well

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    FCC; EAC; CE; UKCA

  • Efficiency (Main Output):

    87.5%

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • JESD-30 Code:

    R-XDMA-P6

  • Length:

    50.8 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    4.5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,6LEAD,.8

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Packing Method:

    BOX

  • Protections:

    OVER CURRENT; OVER LOAD; OVER VOLTAGE; SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.017675 Vrms

  • Seated Height-Max:

    11.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    20 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

SKA20A-05 Frequently Asked Questions (FAQs)

  • The maximum ambient temperature for the SKA20A-05 is 50°C (122°F) with derating, but it's recommended to keep it below 40°C (104°F) for optimal performance and reliability.
  • The SKA20A-05 is not designed for humid environments. It's recommended to use it in a dry, well-ventilated area with a relative humidity below 80%. If you need to use it in a humid environment, consider adding a conformal coating or using a different power supply designed for humid environments.
  • The SKA20A-05 requires a minimum load of 10% of the maximum rated output power to maintain stability and regulation. This means you should ensure that the load is at least 2A for the 20A model.
  • Yes, you can parallel multiple SKA20A-05 units, but it's essential to follow Mean Well's guidelines for parallel operation. You'll need to ensure that the units are identical, and the output voltage and current are matched. Additionally, you may need to add external components, such as resistors or diodes, to balance the current and prevent oscillation.
