SKD115/16 - Semikron

Description: Bridge rectifier: three-phase; Urmax: 1.6kV; If: 110A; Ifsm: 1.15kA

Download SKD115/16 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

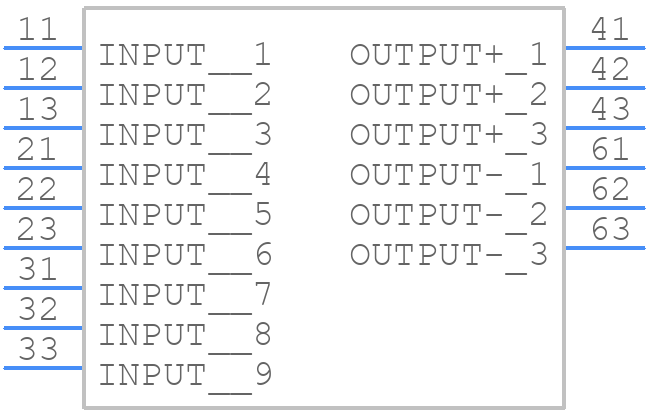

SKD115/16 - Semikron - PCB symbol
click to zoom
PCB Footprints

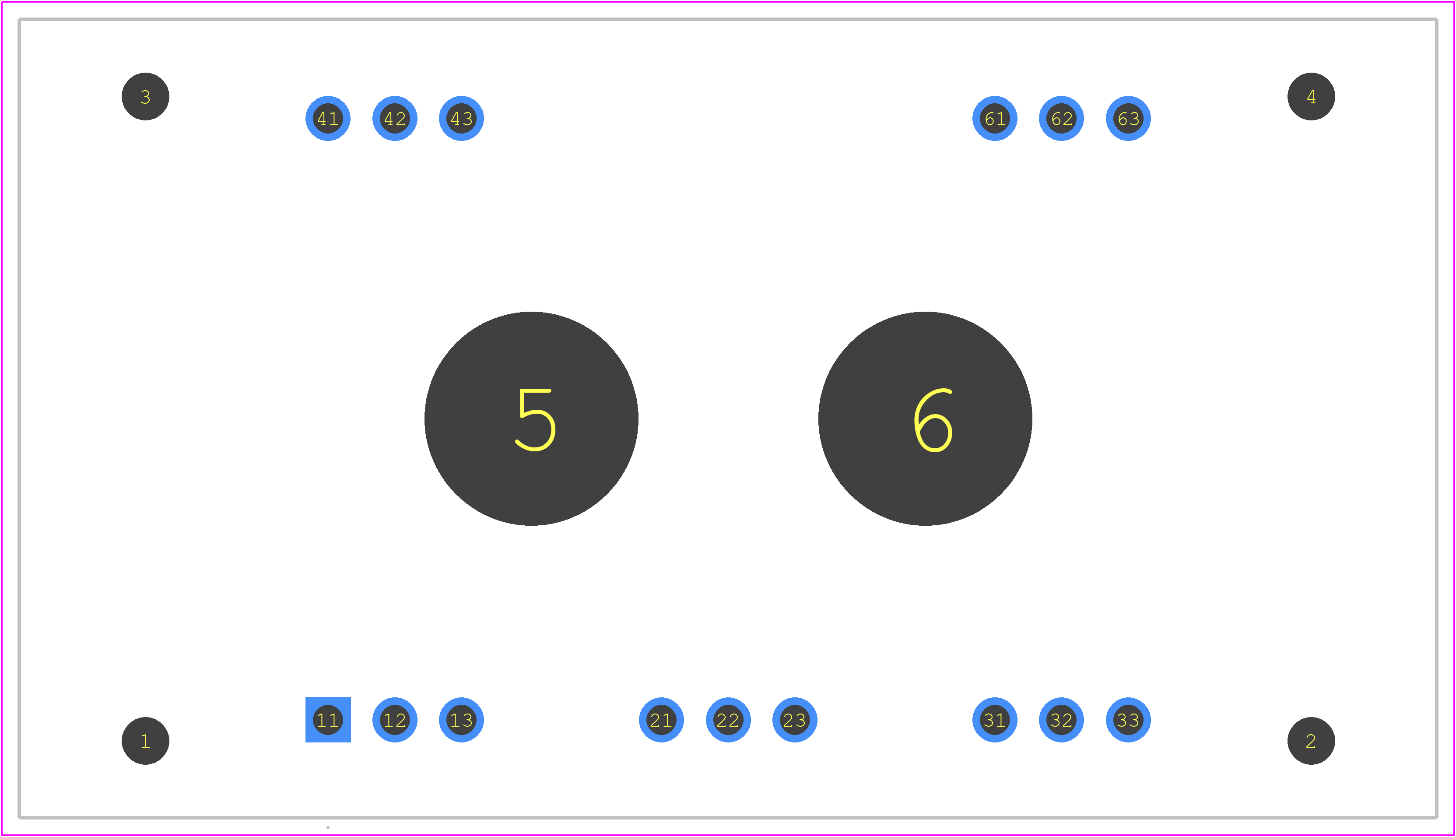

SKD115/16 - Semikron PCB footprint - Other - Other - CASE G 57
click to zoom
3D Models
SKD115/16 - Semikron - 3D model - Other - CASE G 57
click to zoom

SKD115/16 Details

  • Manufacturer Part Number:

    SKD115/16

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    15

  • Manufacturer Package Code:

    CASE G 57

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    SEMIKRON

  • YTEOL:

    6.95

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 6 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.25 V

  • JESD-30 Code:

    R-XUFM-X15

  • JESD-609 Code:

    e2

  • Non-rep Pk Forward Current-Max:

    1150 A

  • Number of Elements:

    6

  • Number of Phases:

    3

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    110 A

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    1600 V

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN SILVER

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

SKD115/16 Frequently Asked Questions (FAQs)

  • The maximum operating temperature of the SKD115/16 IGBT module is 150°C, but it's recommended to keep it below 125°C for optimal performance and longevity.
  • To minimize the effects of parasitic inductances, use a low-inductance bus bar design, keep the module's internal connections short, and use a snubber circuit to reduce voltage spikes.
  • The recommended gate resistor value for the SKD115/16 IGBT module is between 10 ohms and 20 ohms, depending on the specific driver IC and application requirements.
  • Use a properly designed snubber circuit to limit voltage spikes, and implement overcurrent protection using a current sensor and a shutdown circuit that can quickly respond to fault conditions.
  • The thermal impedance of the SKD115/16 IGBT module is typically around 0.25 K/W to 0.35 K/W, depending on the cooling system and heat sink design.
