Part Image

SKD53/16 - Semikron

Description: Bridge Rectifier, Three Phase, 1.6 kV, 53 A, Module, 7 Pins, 1.5 V

Download SKD53/16 Model

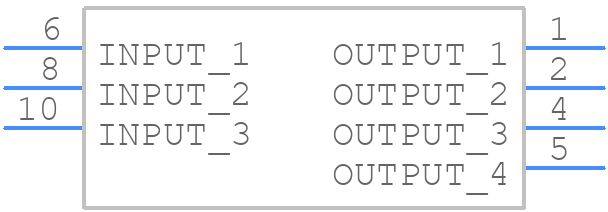

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

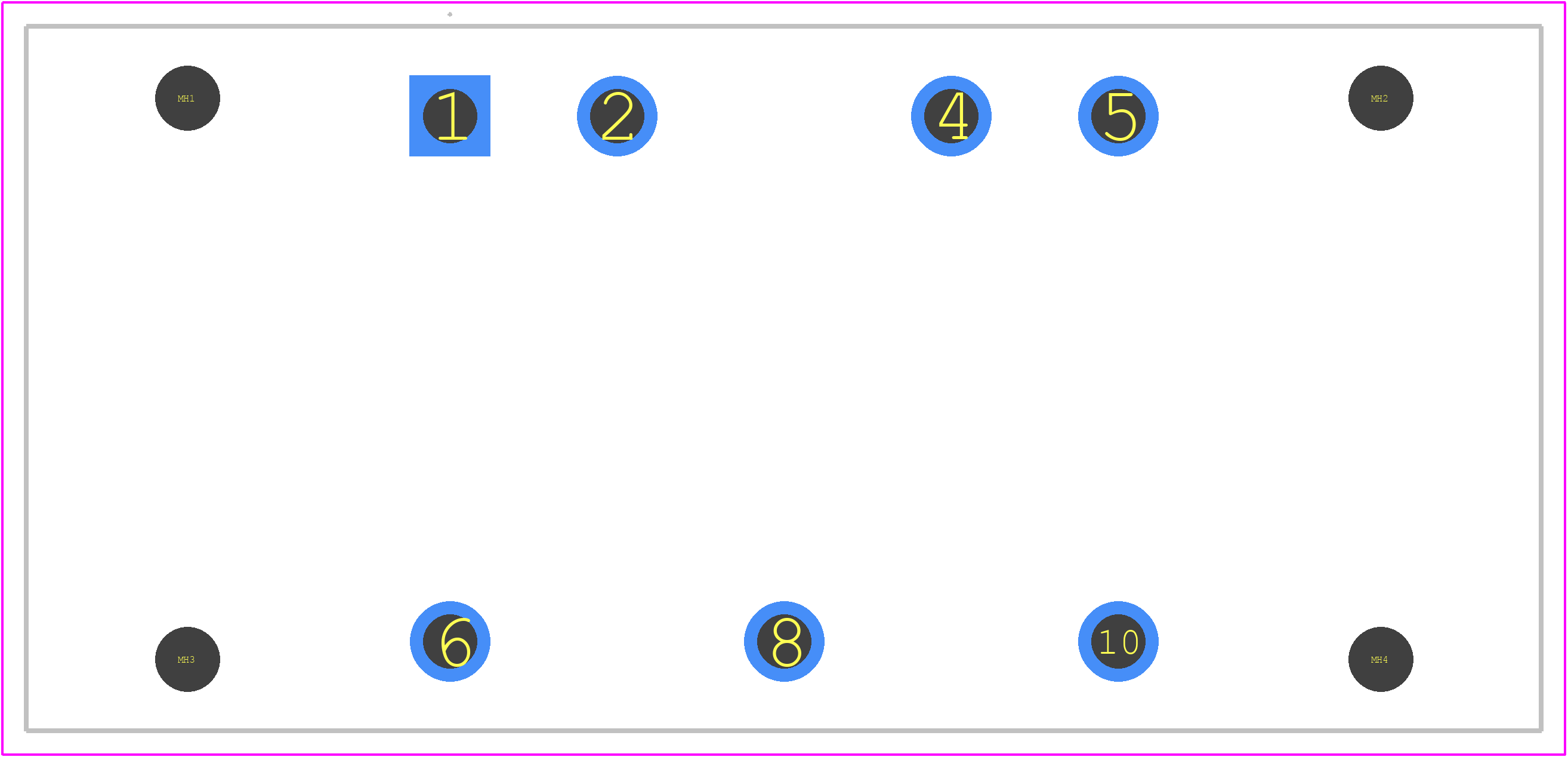

SKD53/16 - Semikron PCB footprint - Other - Other - SKD53/16-1
click to zoom
3D Models
SKD53/16 - Semikron  - 3D model - Other - SKD53/16-1
click to zoom

SKD53/16 Details

  • Manufacturer Part Number:

    SKD53/16

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    7

  • Manufacturer Package Code:

    CASE G 55

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    SEMIKRON

  • YTEOL:

    6.95

  • Case Connection:

    ISOLATED

  • Configuration:

    BRIDGE, 6 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.5 V

  • JESD-30 Code:

    R-XUFM-X7

  • JESD-609 Code:

    e2

  • Non-rep Pk Forward Current-Max:

    270 A

  • Number of Elements:

    6

  • Number of Phases:

    3

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    63 A

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    1600 V

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN SILVER

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

SKD53/16 Frequently Asked Questions (FAQs)

  • The recommended gate resistance for SKD53/16 is between 10 ohms to 20 ohms to ensure proper switching and to prevent oscillations.
  • Yes, SKD53/16 is suitable for high-frequency applications up to 100 kHz, but it's essential to consider the device's switching losses, thermal management, and layout design to ensure reliable operation.
  • To protect SKD53/16 from overvoltage and overcurrent, use a suitable snubber circuit, overvoltage protection devices (e.g., TVS diodes), and current sensing and limiting circuits. Additionally, ensure proper thermal management and heat sinking.
  • The maximum allowed junction temperature for SKD53/16 is 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
  • Yes, SKD53/16 can be used in a parallel configuration, but it's crucial to ensure that the devices are properly matched, and the gate drive and layout are designed to minimize differences in switching times and currents.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SKD53/16 Overview

Use the download button to access the SKD53/16 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKD53, or try a keyword search, such as Bridge Rectifier Diodes
