SKMW06F-24 - Mean Well

SKMW06F-24 Details

• Manufacturer Part Number:

  SKMW06F-24

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

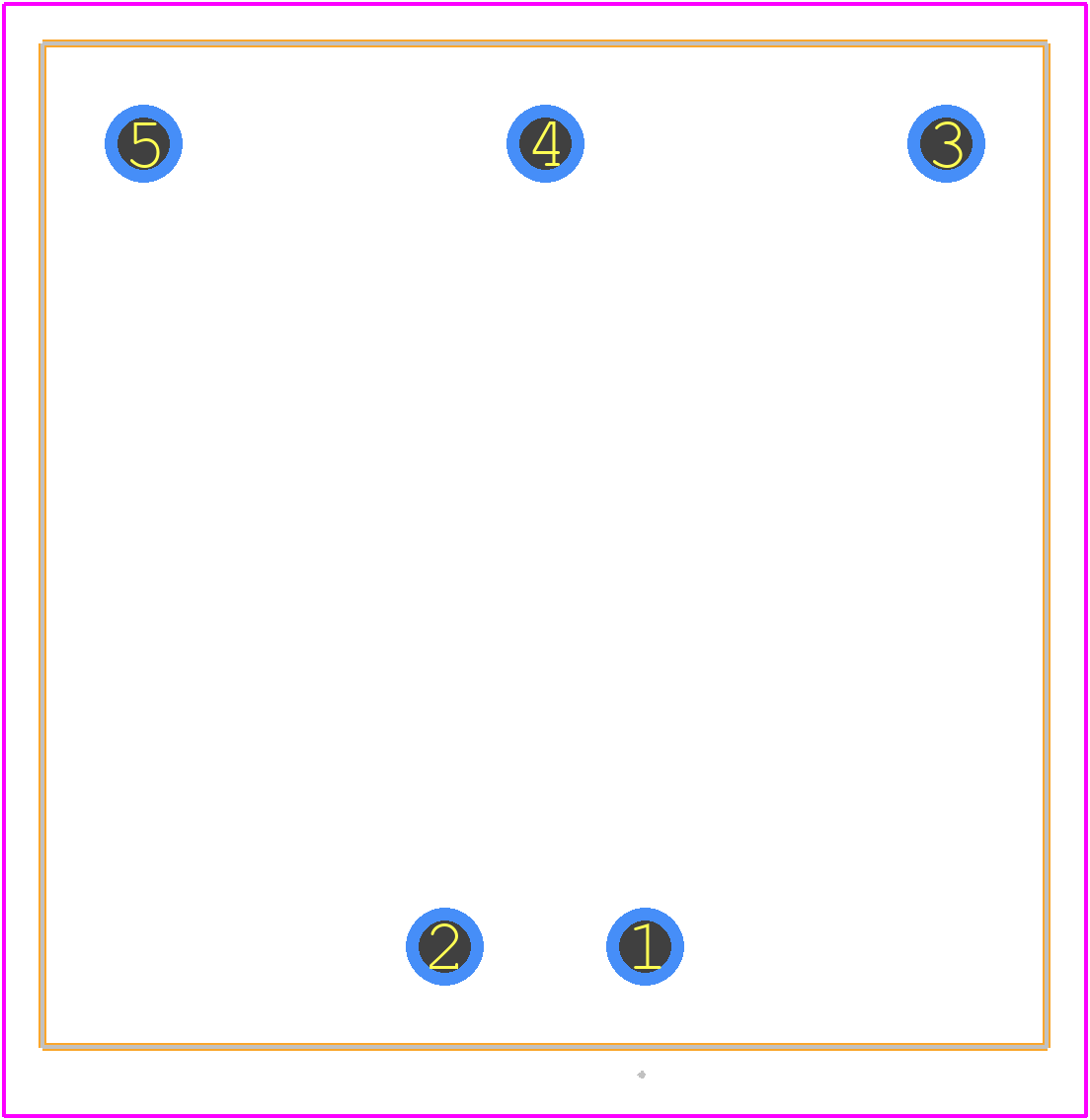

• Package Description:

  DIP-5/4

• ECCN Code:

  EAR99

• Manufacturer:

  Mean Well

• YTEOL:

  0

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, C-UL-US, EAC, EN, UKCA, UL

• Efficiency (Main Output):

  86%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  S-PDIP-P4

• Length:

  25.4 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  4

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.25 A

• Output Voltage-Max:

  24.24 V

• Output Voltage-Min:

  23.76 V

• Output Voltage-Nom:

  24 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP4/5,.8(UNSPEC)

• Package Shape:

  SQUARE

• Package Style:

  IN-LINE

• Packing Method:

  TUBE

• Protections:

  OVER LOAD; OVER VOLTAGE; SHORT CIRCUIT; UNDER VOLTAGE

• Ripple Voltage (Main Out):

  0.03 Vrms

• Seated Height-Max:

  12.7 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  6 W

• Trim/Adjustable Output:

  NO

• Width:

  25.4 mm
