SKMW30F-03 - Mean Well

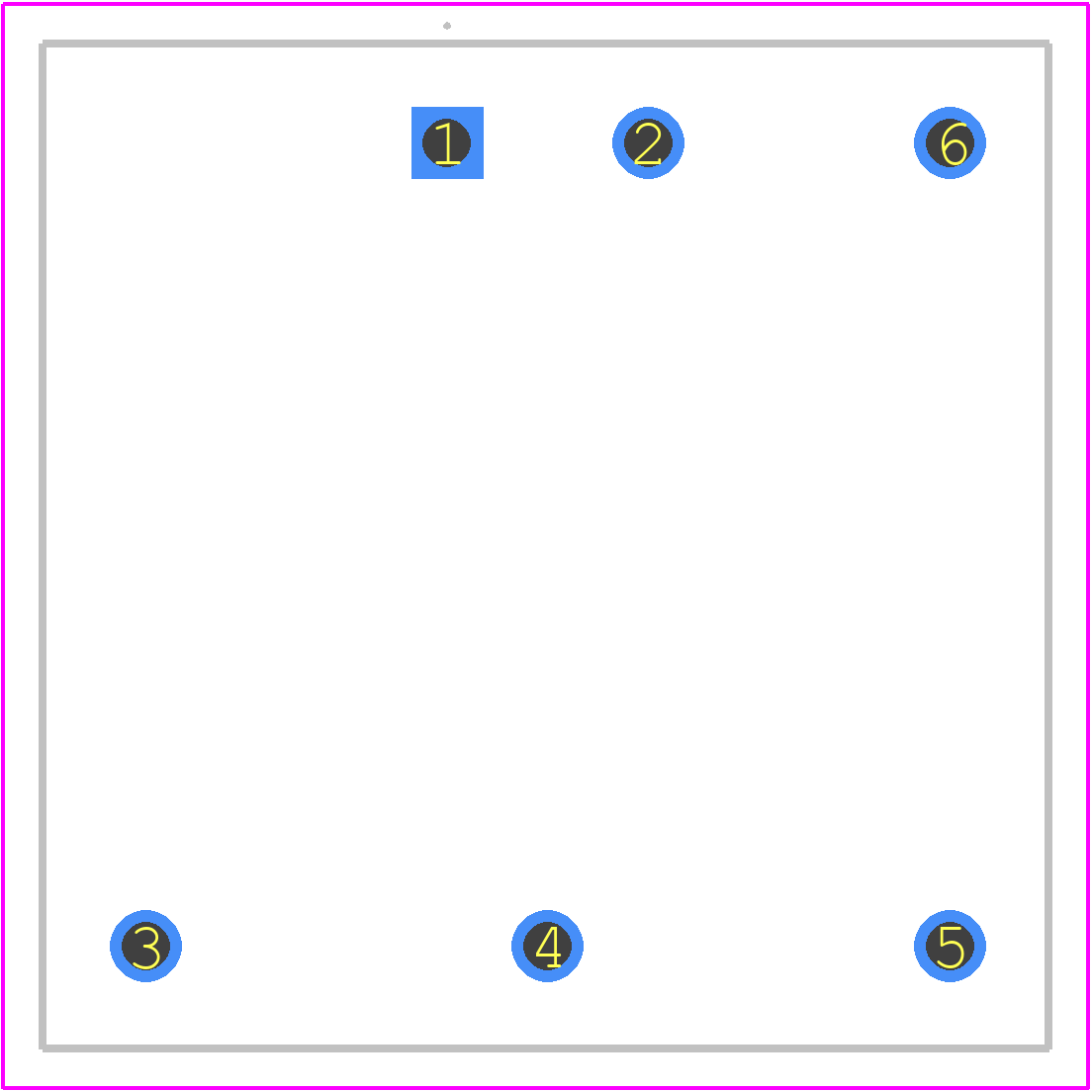

SKMW30F-03 Details

• Manufacturer Part Number:

  SKMW30F-03

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• Factory Lead Time:

  19 Weeks, 3 Days

• Manufacturer:

  Mean Well

• YTEOL:

  7

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CE, EAC, EN

• Efficiency (Main Output):

  88%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PDMA-P6

• Length:

  25.4 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  0.2%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  7.5 A

• Output Voltage-Max:

  3.63 V

• Output Voltage-Min:

  2.97 V

• Output Voltage-Nom:

  3.3 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  SHORT CIRCUIT; OVER LOAD; OVER VOLTAGE; THERMAL; UNDER VOLTAGE

• Ripple Voltage (Main Out):

  0.0265125 Vrms

• Seated Height-Max:

  11.2 mm

• Surface Mount:

  NO

• Switching Frequency-Max:

  270 kHz

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  24.75 W

• Trim/Adjustable Output:

  YES

• Width:

  25.4 mm
