The recommended PCB layout and land pattern for the SKY12348-350LF can be found in the Skyworks Solutions Inc. application note AN302A, which provides detailed guidelines for optimal performance and thermal management.
Skyworks Solutions Inc. provides a comprehensive evaluation board and design guide for the SKY12348-350LF, which includes recommended biasing and configuration settings for various applications. Additionally, the Skyworks' application engineering team can provide custom support and guidance.
The SKY12348-350LF has a maximum junction temperature of 150°C. To prevent overheating, ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout and thermal management guidelines outlined in the datasheet and application notes.
Yes, the SKY12348-350LF is a sensitive device and requires proper ESD protection during handling and assembly. Follow standard ESD precautions, such as using an ESD wrist strap, mat, or workstation, and ensure that all equipment and tools are properly grounded.
The SKY12348-350LF meets or exceeds industry standards for reliability and quality, including AEC-Q100 and ISO/TS 16949. Skyworks Solutions Inc. provides detailed reliability data and quality metrics upon request, and can work with customers to meet specific industry standards and requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY12348-350LF Overview

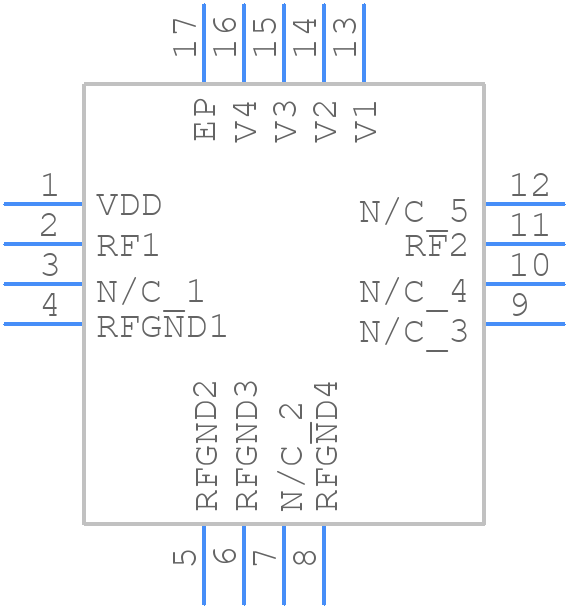

Use the download button to access the SKY12348-350LF schematic symbol, PCB footprint, and 3D model.
