The recommended PCB layout and land pattern can be found in the Skyworks Solutions application note AN302A, which provides guidelines for optimal performance and minimizes parasitic effects.
Skyworks Solutions provides a comprehensive evaluation board and design guide for the SKY13374-397LF, which includes recommended biasing and configuration settings for various applications. Additionally, engineers can consult with Skyworks' technical support team for customized guidance.
The SKY13374-397LF has a maximum junction temperature of 150°C. To prevent overheating, ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Skyworks Solutions also provides thermal management guidelines in their application notes.
Yes, the SKY13374-397LF is a sensitive device and requires proper ESD protection during handling and assembly. Follow standard ESD precautions, such as using an ESD wrist strap, mat, or workstation, and ensure that all equipment and tools are properly grounded.
Skyworks Solutions provides reliability data and quality metrics for the SKY13374-397LF, which meets or exceeds industry standards such as ISO 9001, IATF 16949, and AEC-Q100. Engineers can consult with Skyworks' technical support team for specific reliability and quality data.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY13374-397LF Overview

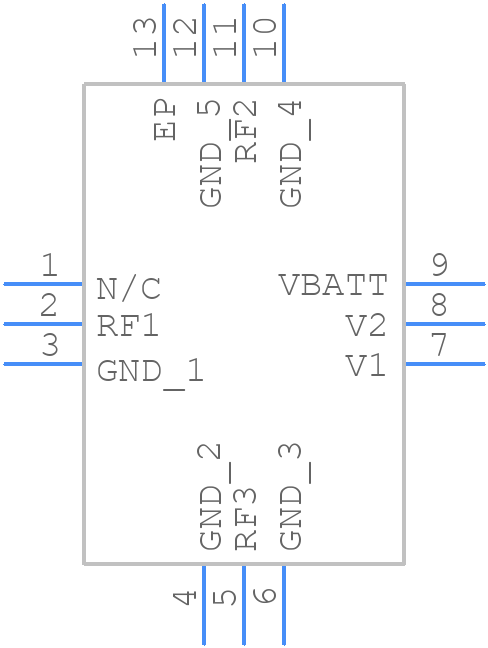

Use the download button to access the SKY13374-397LF schematic symbol, PCB footprint, and 3D model.
