The recommended PCB layout and land pattern can be found in the Skyworks Solutions application note AN302A, which provides detailed guidelines for optimal performance and thermal management.
Skyworks Solutions provides a comprehensive evaluation board and design guide for the SKY13414-485LF, which includes recommended biasing and configuration settings for various applications. Additionally, the Skyworks Solutions' technical support team can provide customized guidance for specific use cases.
The SKY13414-485LF has a maximum junction temperature of 150°C. To prevent overheating, ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Skyworks Solutions also provides thermal management guidelines in the device's datasheet and application notes.
Yes, the SKY13414-485LF is a sensitive device and requires proper ESD protection during handling and assembly. Follow standard ESD precautions, such as using an ESD wrist strap, ESD mat, and ESD-protected packaging and storage.
Store the SKY13414-485LF in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the device by the package body, avoiding touching the pins or electrical connections. Follow the recommended storage and handling guidelines outlined in the device's datasheet.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY13414-485LF Overview

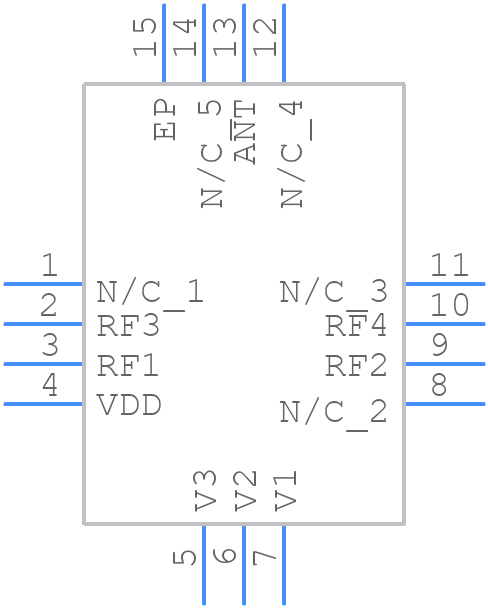

Use the download button to access the SKY13414-485LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY13,
or try a keyword search, such as RF/Microwave Switches
