SKY13415-485LF - Skyworks

Description: RF Switch ICs 100-3000MHz SP5T IL .45dB Iso >31dB

Download SKY13415-485LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

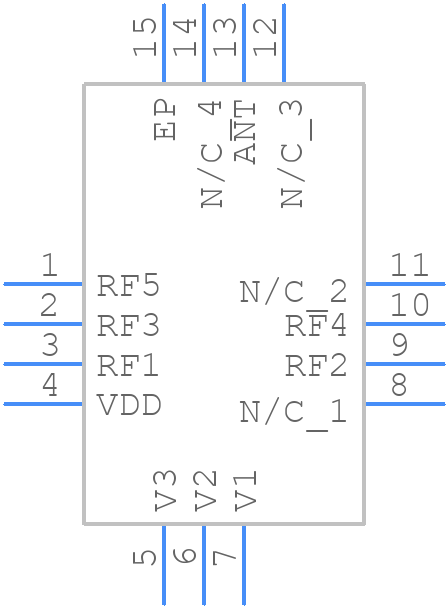

Symbol
SKY13415-485LF - Skyworks - PCB symbol
click to zoom
PCB Footprints
SKY13415-485LF - Skyworks PCB footprint - Other - Other - SKY13415-485LF-1
click to zoom
3D Models
SKY13415-485LF - Skyworks - 3D model - Other - SKY13415-485LF-1
click to zoom

SKY13415-485LF Details

  • Manufacturer Part Number:

    SKY13415-485LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    Skyworks Solutions Inc

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Insertion Loss-Max:

    0.6 dB

  • Isolation-Min:

    27 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • On Time-Nom:

    1.75 µs

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC14,.08SQ,18

  • Power Supplies:

    2.6 V

  • RF/Microwave Device Type:

    SP5T

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

SKY13415-485LF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the antenna, and the RF traces should be kept as short as possible.
  • The device requires a 2.7V to 5.5V power supply, and the VCC pin should be decoupled with a 100nF capacitor. The EN pin should be tied to VCC or a digital signal for enable/disable control.
  • The device can handle up to 30dBm of input power, but it's recommended to operate at 20dBm or less for optimal performance and reliability.
  • Use a spectrum analyzer to check the output frequency and power. Verify the input signal is within the recommended frequency range and power level. Check the PCB layout and ensure proper grounding and decoupling.
  • Yes, the device can be used for other wireless standards such as Bluetooth, Zigbee, and proprietary wireless protocols, but the performance may vary depending on the specific application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SKY13415-485LF Overview

Use the download button to access the SKY13415-485LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY13, or try a keyword search, such as RF/Microwave Switches
