SKY13416-485LF footprint, schematic symbol and 3D model by Skyworks

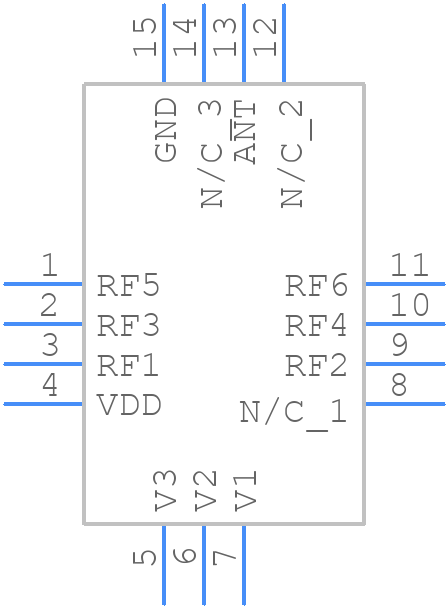

Symbol

click to zoom

PCB Footprints

SKY13416-485LF - Skyworks PCB footprint - Other - Other - SKY13416-485LF-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SKY13416-485LF
Part Number SKY13416-485LF
Manufacturer Skyworks
Pin Count 15
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SKY13416-485LF-4
Released Date Mar 6, 2020
Last Modified Date Jun 5, 2026 5:26 PM UTC
Pinout / Pin List Click Here (Member Only)

SKY13416-485LF Details

Manufacturer Part Number:
SKY13416-485LF
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
Skyworks Solutions Inc
YTEOL:
7.2
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Input Power-Max (CW):
37.5 dBm
Insertion Loss-Max:
0.95 dB
Isolation-Min:
15 dB
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
14
On Time-Nom:
1.75 µs
Operating Frequency-Max:
6000 MHz
Operating Frequency-Min:
100 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Equivalence Code:
SOLCC14,.08,16
Packing Method:
TR
Power Supplies:
2.6 V
RF/Microwave Device Type:
SP6T
Supply Current-Max:
0.05 mA
Surface Mount:
YES
VSWR-Max:
5

SKY13416-485LF Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the antenna, and the RF traces should be kept short and away from digital lines.
The device requires a 2.7V to 5.5V power supply, and the VCC pin should be decoupled with a 100nF capacitor. The EN pin should be tied to VCC or a digital signal for enable/disable control.
The device can handle up to 30dBm of input power, but it's recommended to operate at 20dBm or less for optimal performance and reliability.
Use a spectrum analyzer to check the output spectrum, and verify that the input signal is within the recommended frequency range. Check the PCB layout and ensure that the device is properly biased and decoupled.
Yes, the device is compatible with other wireless standards such as Bluetooth, Zigbee, and LTE, but the performance may vary depending on the specific application and frequency band.

Trust Checks

Expert Contribution

System Verified

Community Approved

SKY13416-485LF Overview

Use the download button to access the SKY13416-485LF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SKY13, or try a keyword search, such as RF/Microwave Switches
