Description:The SKY13698-694LF is a state-of-the-art CMOS, silicon-oninsulator (SOI) double-pole, double-throw (DPDT) switch. The switch provides high-linearity performance, low insertion loss, and high isolation, 1.35 to 2.8 V, 30 dB @ 3.8 GHz, 0.4 to 5.9 GHz, –40°C to +90°C
Skyworks provides a recommended PCB layout and land pattern in their application note AN201201 Rev. 2, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The SKY13698-694LF has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate thermal management, such as using a heat sink or thermal pad, and ensuring good airflow around the device. Skyworks recommends following the thermal management guidelines in their application note AN201201 Rev. 2.
Skyworks recommends following the soldering guidelines in their application note AN201201 Rev. 2, which includes using a soldering temperature of 260°C (max) and a soldering time of 10 seconds (max) to prevent damage to the device.
Skyworks provides troubleshooting guidelines in their application note AN201201 Rev. 2, which includes checking the PCB layout, component values, and soldering quality. Additionally, engineers can use simulation tools and measurement equipment to identify and isolate the root cause of the issue.
Yes, the SKY13698-694LF is an ESD-sensitive device and requires proper handling and storage to prevent damage. Skyworks recommends following the ESD handling and storage guidelines in their application note AN201201 Rev. 2, which includes using ESD-safe materials, grounding straps, and storing the devices in anti-static packaging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY13698-694LF Overview

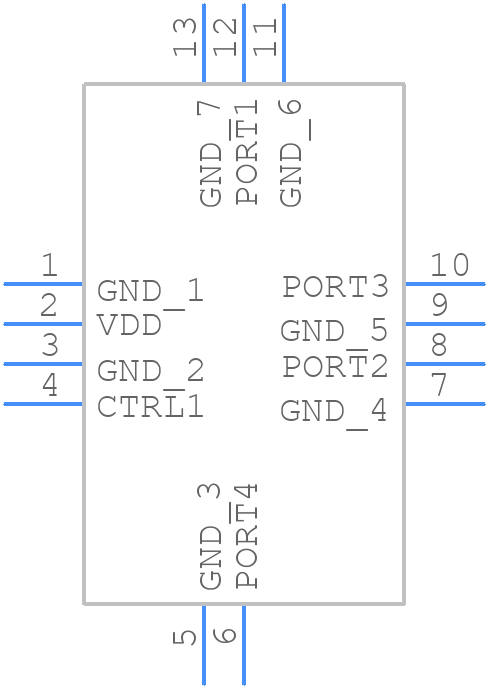

Use the download button to access the SKY13698-694LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY13,
or try a keyword search, such as RF/Microwave Switches
