The recommended PCB layout involves using a 4-layer board with a solid ground plane, and placing the device near the edge of the board to minimize thermal resistance. Thermal management involves using a heat sink or thermal pad to dissipate heat, and ensuring good airflow around the device.
Optimizing the input and output matching networks involves using a combination of simulation tools and empirical methods to achieve the best possible impedance match. This may involve using a Smith chart to visualize the impedance, and adjusting the component values to achieve a good match.
Key considerations for ensuring EMC and reducing EMI include using a shielded enclosure, keeping the device away from other noise-sensitive components, using a common-mode choke to reduce common-mode noise, and ensuring good grounding and shielding practices.
Troubleshooting common issues involves using a systematic approach to identify the root cause of the problem. This may involve checking the device's operating conditions, verifying the PCB layout and component values, and using diagnostic tools such as a spectrum analyzer or oscilloscope to identify the source of the issue.
Skyworks Solutions Inc has a robust quality control process in place, which includes rigorous testing and inspection of the devices, as well as compliance with industry standards such as ISO 9001 and AEC-Q100. The company also provides a warranty and support for the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY16406-381LF Overview

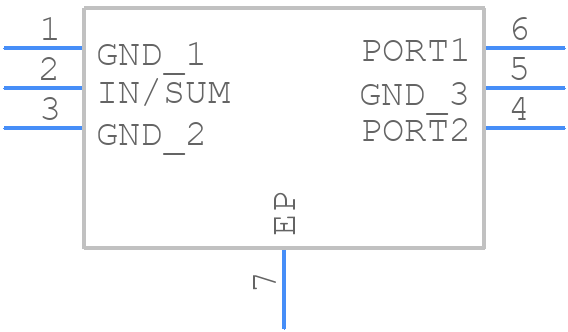

Use the download button to access the SKY16406-381LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY16,
or try a keyword search, such as RF/Microwave Splitter/Combiners
