The recommended PCB layout involves using a 4-layer board with a solid ground plane, and placing the device near the edge of the board to minimize thermal resistance. Thermal management involves using thermal vias, thermal pads, and a heat sink to keep the junction temperature below 125°C.
Optimize the input and output matching networks by using a Smith chart to determine the optimal impedance matching, and then using a network analyzer to fine-tune the matching components. The goal is to achieve a return loss of at least 15 dB at the operating frequency.
The SKY55950-11 is designed to operate from 700 MHz to 2.7 GHz, but it can be optimized for specific frequency bands within this range. However, operation outside of this range may result in reduced performance or instability.
Ensure stability by following the recommended circuit topology, using a stable voltage supply, and adding decoupling capacitors to the power supply lines. Additionally, use a low-pass filter or a ferrite bead to prevent high-frequency oscillations.
The recommended biasing scheme involves using a voltage-controlled current source to set the quiescent current, and then adjusting the voltage supply to optimize linearity and efficiency. The goal is to achieve a quiescent current of around 100 mA for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY55950-11 Overview

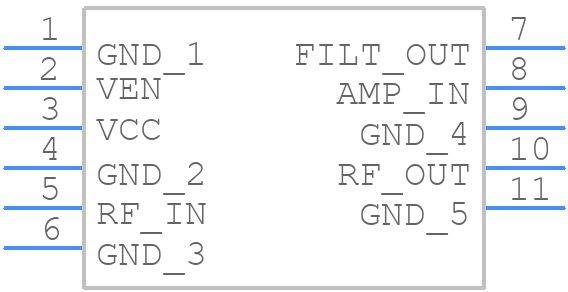

Use the download button to access the SKY55950-11 schematic symbol, PCB footprint, and 3D model.
