The recommended PCB layout and land pattern can be found in the Skyworks Solutions application note AN20099, which provides guidelines for optimal performance and thermal management.
Skyworks Solutions provides a comprehensive evaluation board and software development kit (SDK) for the SKY65111-348LF, which includes a user guide and application notes to help with biasing and configuration.
The SKY65111-348LF has a maximum junction temperature of 150°C. To prevent overheating, ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout and thermal management guidelines in the datasheet and application notes.
Yes, the SKY65111-348LF is a sensitive device and requires proper ESD protection during handling and assembly. Follow standard ESD precautions, such as using an ESD wrist strap, mat, and packaging materials, and ensure that the device is properly grounded during assembly.
Store the SKY65111-348LF in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the device by the package body, avoiding touching the pins or electrical connections to prevent damage or contamination.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SKY65111-348LF Overview

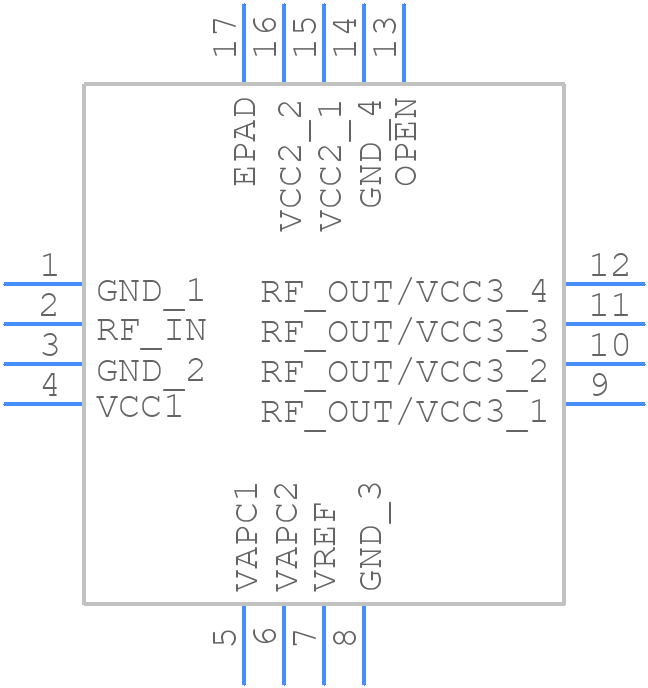

Use the download button to access the SKY65111-348LF schematic symbol, PCB footprint, and 3D model.
