The recommended PCB layout involves using a 4-layer board with a solid ground plane, and placing the device near the edge of the board to minimize thermal resistance. Thermal management involves using a heat sink or thermal pad to keep the junction temperature below 125°C.
Optimize the input and output matching networks by using a combination of series and shunt inductors, capacitors, and resistors to achieve a conjugate match. Use simulation tools like ADS or AWR to model and optimize the matching networks.
The recommended biasing involves setting Vdd to 5V, Vgg to 2.5V, and Vbb to 0.5V. For tuning, adjust the gate bias voltage (Vgg) to optimize the output power and efficiency. Use a variable voltage source to adjust Vgg while monitoring the output power and efficiency.
Ensure stability by using a proper PCB layout, decoupling capacitors, and a stable voltage supply. Use a ferrite bead or a choke inductor in series with the supply line to prevent oscillations. Also, add a resistor in series with the gate bias voltage to prevent oscillations.
Handle the device with ESD-protective equipment and follow proper ESD handling procedures. Use an ESD wrist strap or mat, and store the device in an ESD-protective package. Avoid touching the device's pins or exposing it to static electricity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY65135-21 Overview

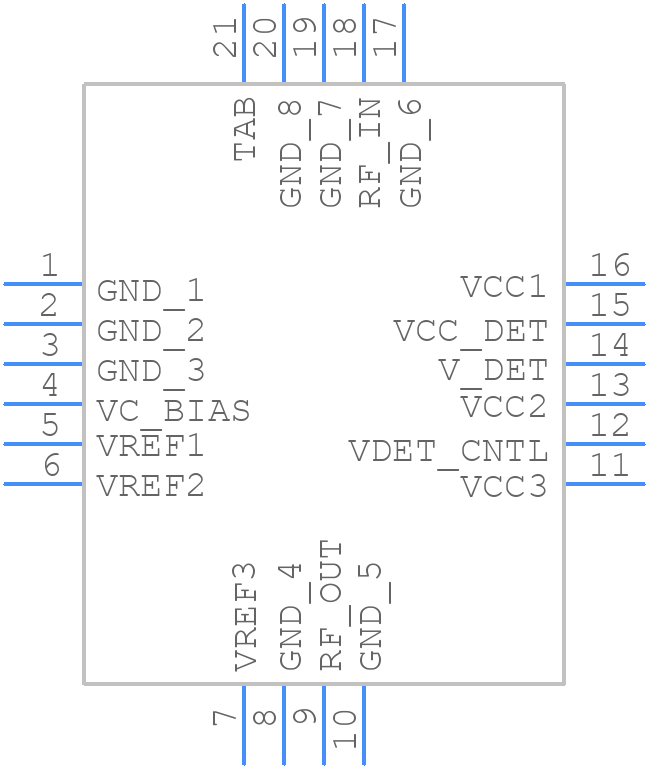

Use the download button to access the SKY65135-21 schematic symbol, PCB footprint, and 3D model.
