Skyworks provides a recommended PCB layout and land pattern in their application note AN20099, which should be followed to ensure optimal performance and minimize parasitic effects.
The biasing network should be optimized based on the specific application's requirements, such as output power, gain, and linearity. Skyworks recommends using their simulation models and design tools, such as the Skyworks Advanced Design System (ADS) model, to optimize the biasing network.
The SKY65135-31 is rated for operation from -40°C to +85°C, but it's recommended to derate the device's performance and power handling at higher temperatures to ensure reliability and prevent thermal runaway.
To ensure EMI compliance, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. Additionally, Skyworks recommends following the guidelines outlined in their application note AN20099.
The SKY65135-31 should be stored in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static precautions, such as using an ESD wrist strap or mat, to prevent damage from electrostatic discharge.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY65135-31 Overview

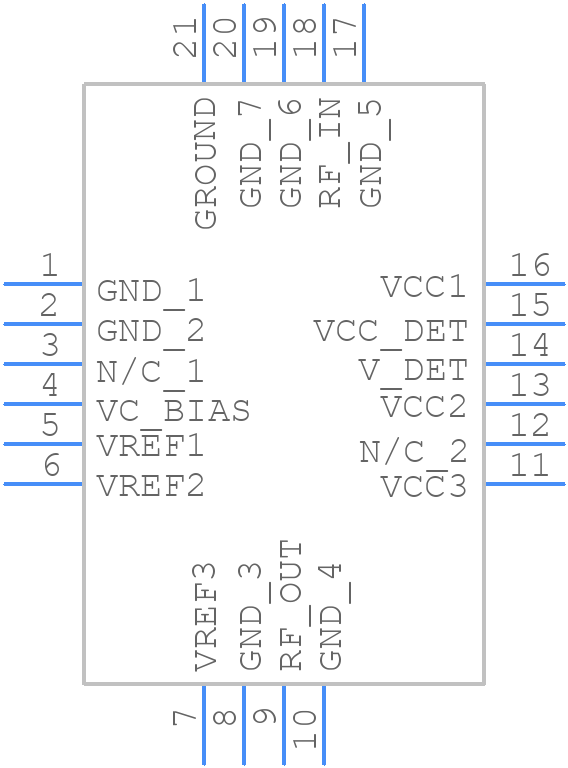

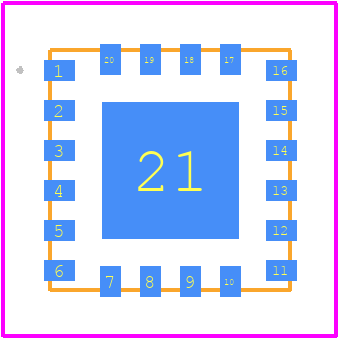

Use the download button to access the SKY65135-31 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY65,
or try a keyword search, such as RF/Microwave Amplifiers
