The recommended PCB layout involves keeping the RF traces as short as possible, using a solid ground plane, and placing the device near the antenna. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad connection.
Optimize linearity and efficiency by adjusting the bias voltage, current, and load impedance. Consult the application note and simulation models provided by Skyworks Solutions Inc. for guidance on optimizing performance for your specific use case.
The SKY66100-11 has built-in ESD protection, but handling precautions are still necessary. Follow standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and avoid touching the device's pins or exposed die.
Yes, the SKY66100-11 can be used in non-50 ohm systems. For impedance matching, use a pi-network or L-network topology, and consult the application note and simulation models provided by Skyworks Solutions Inc. for guidance on impedance matching for your specific application.
The SKY66100-11 has undergone rigorous reliability and qualification tests, including temperature cycling, humidity testing, and mechanical stress testing, as per industry standards such as JEDEC and AEC-Q100. Consult the device's qualification report for detailed information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY66100-11 Overview

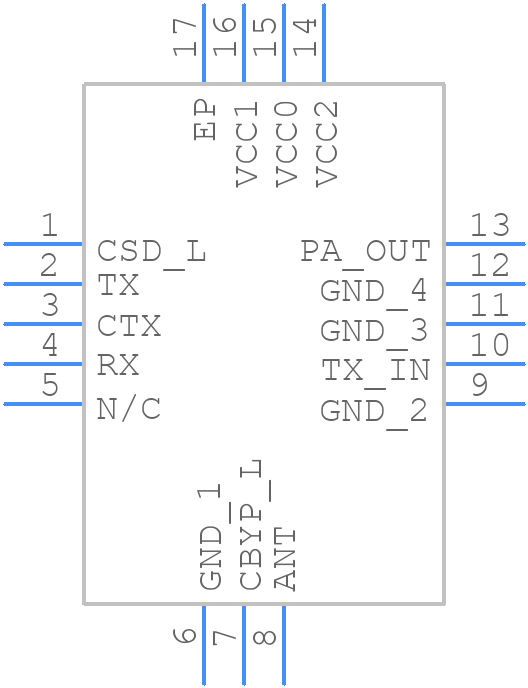

Use the download button to access the SKY66100-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY66,
or try a keyword search, such as Other RF/Microwave Devices
