The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing thermal vias under the device. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal impedance guidelines.
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider factors like frequency, impedance, and power handling. Skyworks provides a reference design and application notes to help with the process.
Follow the recommended soldering profile and assembly techniques outlined in the Skyworks application notes. Use a reflow oven with a controlled temperature profile, and ensure proper cleaning and handling of the device to prevent damage.
Use a systematic approach to troubleshoot issues. Check the PCB layout, thermal management, and input/output matching networks. Verify the device is operated within the recommended specifications and consider using simulation tools to identify potential issues.
Yes, follow standard ESD precautions when handling the device, such as using an ESD wrist strap, mat, or workstation. Avoid touching the device pins or exposing it to static electricity. Store the device in an anti-static bag or container when not in use.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY66112-11 Overview

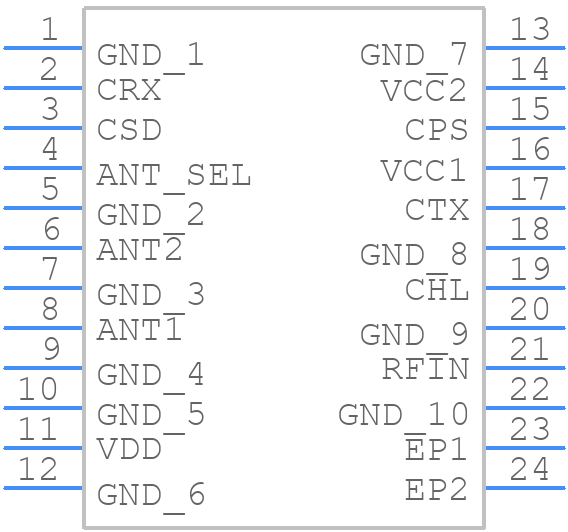

Use the download button to access the SKY66112-11 schematic symbol, PCB footprint, and 3D model.
