The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing thermal vias under the device. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad layout.
Use a combination of simulation tools (e.g., ADS, AWR) and measurement-based optimization techniques to design and optimize the input and output matching networks for your specific frequency band, impedance, and power requirements.
The recommended bias voltage is typically between 3.3V to 5V, and the bias current should be set to the minimum required for the application, typically around 10-20mA. However, consult the datasheet and application notes for specific guidance.
Monitor the device's voltage, current, and temperature to ensure they are within the recommended operating ranges. Use protective circuits and thermal monitoring to prevent overheating and overvoltage conditions.
Handle the device with ESD-protective equipment and follow proper handling procedures to prevent damage. The device has built-in ESD protection, but it's still important to follow standard ESD precautions during handling and assembly.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY66288-11 Overview

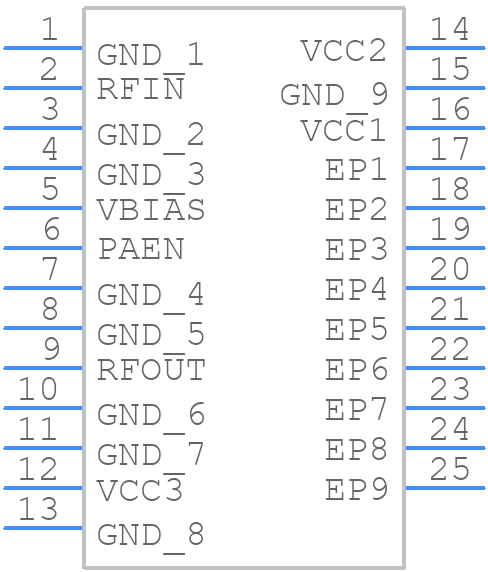

Use the download button to access the SKY66288-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY66,
or try a keyword search, such as RF/Microwave Amplifiers
