The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing thermal vias under the device. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal impedance guidelines.
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider factors like frequency, impedance, and power handling. Skyworks provides a reference design and application notes to help with the optimization process.
Follow the recommended soldering profile and assembly techniques outlined in the Skyworks application note AN3021. Use a soldering iron with a temperature range of 250°C to 260°C, and ensure the device is handled by trained personnel to prevent damage.
Consult the Skyworks troubleshooting guide and application notes for common issues. Check for proper thermal management, ensure correct input and output matching, and verify the device is operated within the recommended specifications.
Yes, follow standard ESD precautions when handling the device, such as using an ESD wrist strap, mat, or workstation. Ensure the device is stored in an anti-static bag or container when not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY66294-11 Overview

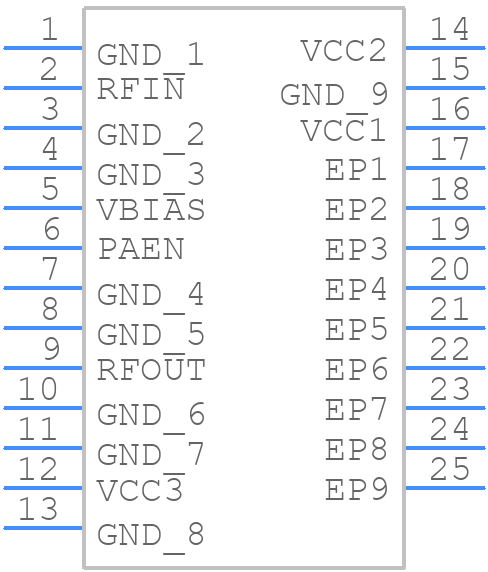

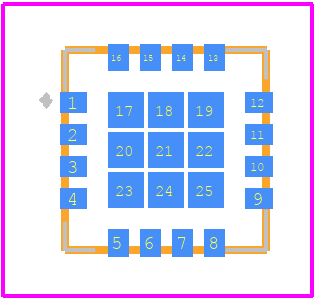

Use the download button to access the SKY66294-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY66,
or try a keyword search, such as Cellular Telephone Circuits
