Skyworks provides a recommended PCB layout and land pattern in their application note AN2038, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The biasing network optimization depends on the specific application and operating conditions. Skyworks recommends consulting their application engineers or using their online tools, such as the Skyworks Amplifier Bias Calculator, to determine the optimal biasing configuration.
While the datasheet specifies an operating temperature range of -40°C to +85°C, it's essential to note that the device can be operated at higher temperatures with derating. Consult the datasheet and application notes for more information on temperature derating and thermal management.
To ensure EMI compliance, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing trace lengths, and using shielding and filtering components as needed. Additionally, consult the datasheet and application notes for specific EMI-related guidelines.
Skyworks recommends following standard ESD handling and storage procedures, such as storing the devices in anti-static packaging and handling them with ESD-protected tools and equipment. Consult the datasheet and Skyworks' website for more information on storage and handling guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY66295-21 Overview

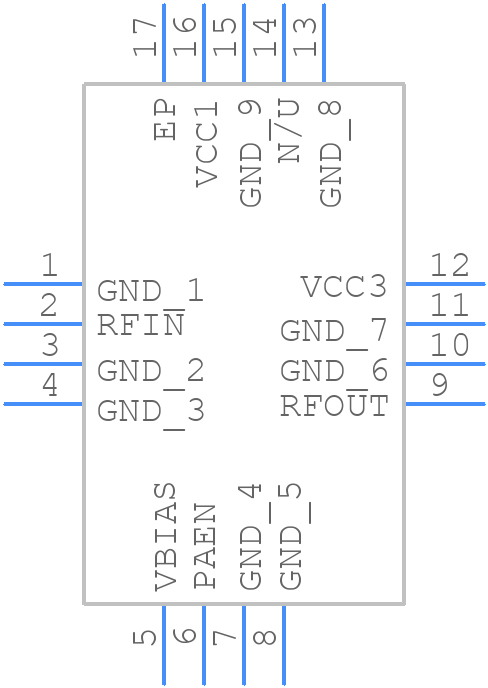

Use the download button to access the SKY66295-21 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY66,
or try a keyword search, such as RF/Microwave Amplifiers
