Skyworks provides a recommended PCB layout and thermal management guide in their application note (AN203315) for the SKY66312-11. It's essential to follow these guidelines to ensure optimal performance, thermal stability, and to prevent overheating.
Skyworks offers a free online tool, the Skyworks' Impedance Matching Tool, which helps designers optimize the input and output matching networks for their specific application. Additionally, the datasheet provides general guidelines for matching network design.
Although the datasheet specifies an operating temperature range of -40°C to +85°C, Skyworks recommends derating the device's power output above +70°C to ensure reliable operation and prevent overheating.
Skyworks provides guidelines for EMC and EMI reduction in their application note (AN203315). Additionally, designers should follow good PCB design practices, such as using shielding, grounding, and filtering, to minimize EMI and ensure EMC compliance.
The typical current consumption and power dissipation of the SKY66312-11 vary depending on the operating frequency, output power, and supply voltage. Skyworks provides a power consumption table in the datasheet, and designers should consult this table to estimate the current consumption and power dissipation for their specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY66312-11 Overview

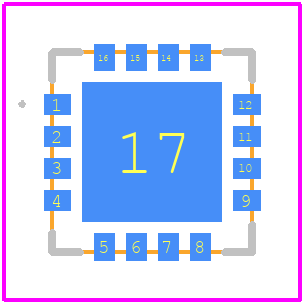

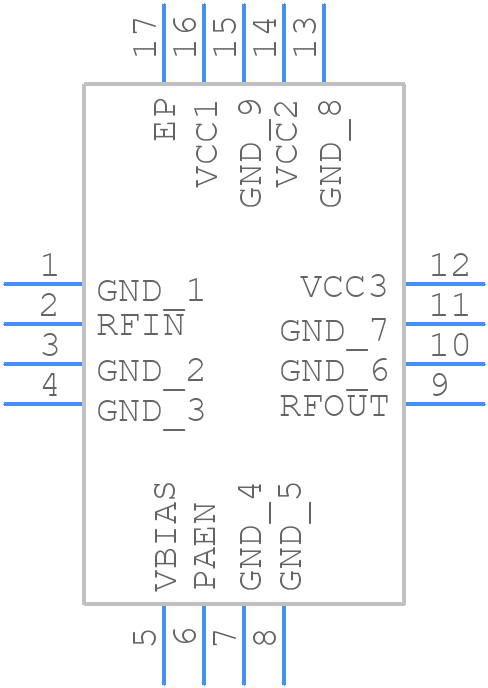

Use the download button to access the SKY66312-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY66,
or try a keyword search, such as RF/Microwave Amplifiers
