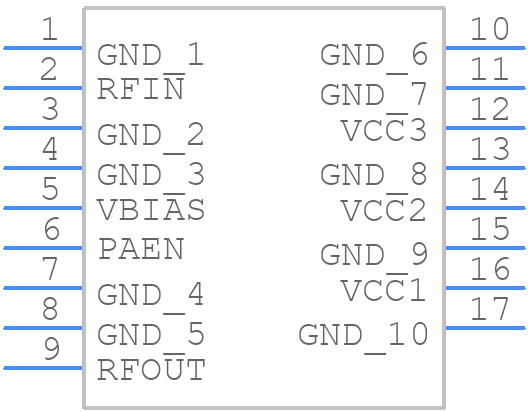

SKY66313-11 - Skyworks

SKY66313-11 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and thermal management for optimal performance?
  A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use a thermal pad on the bottom of the device and connect it to a thermal plane on the PCB.
• How do I optimize the input and output matching networks for maximum power transfer?
  Use a Smith chart or a network analyzer to optimize the input and output impedance matching networks. The goal is to achieve a conjugate match between the device's input/output impedance and the external circuitry.
• What are the recommended voltage and current derating guidelines for reliability and longevity?
  Derate the voltage by 10-15% and current by 20-25% from the maximum ratings to ensure reliability and longevity. This will help reduce thermal stress and increase the device's lifespan.
• How do I troubleshoot and debug issues with the device, such as low gain or high noise floor?
  Use a signal generator and a spectrum analyzer to troubleshoot issues. Check the input and output signals, and verify that the device is properly biased and matched. Consult the application notes and datasheet for troubleshooting guidelines.
• What are the ESD protection and handling precautions for the device?
  Handle the device with ESD-protective equipment and follow proper handling procedures to prevent damage. The device has built-in ESD protection, but it's not a substitute for proper handling and storage procedures.
