A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for heat dissipation. Use a thermal pad on the bottom of the device and connect it to a thermal plane on the PCB.
Use a Smith chart or a network analyzer to optimize the input and output impedance matching networks. The device's input and output impedances are 50 ohms, but the optimal matching network values may vary depending on the specific application and frequency band.
A voltage-controlled biasing scheme is recommended. Set the quiescent current (IQ) to 100-150 mA for optimal performance. Use a voltage regulator to set the VCC voltage to 3.3-5.0 V, and adjust the bias resistor values accordingly.
Ensure the device is properly biased and the input and output impedance matching networks are optimized. Use a stabilizing capacitor (e.g., 100 pF) between the base and emitter of the internal transistor. Avoid parasitic inductances and capacitances in the PCB layout.
Handle the device with an anti-static wrist strap or mat. Use ESD-sensitive packaging and storage materials. Apply a 1 kΩ resistor and a 100 pF capacitor in series between the device's pins and the PCB's ground plane for ESD protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY66317-11 Overview

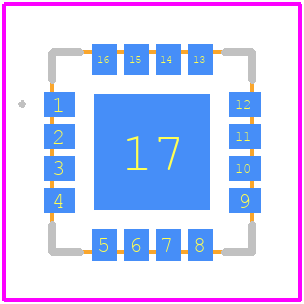

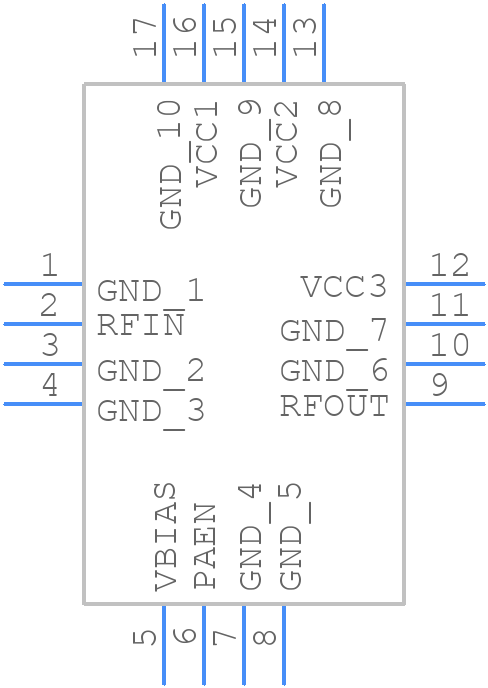

Use the download button to access the SKY66317-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY66,
or try a keyword search, such as RF/Microwave Amplifiers
