The recommended PCB layout involves using a 4-layer board with a solid ground plane, and placing the device near the edge of the board to minimize thermal resistance. Thermal management involves using thermal vias and a heat sink to keep the junction temperature below 125°C.
Optimize the input and output matching networks by using a combination of simulation tools and empirical methods. Start with a theoretical match using a Smith chart, and then iterate using a network analyzer and a tuner to achieve the best possible match.
Key considerations for biasing and stabilizing the amplifier include ensuring a stable voltage supply, using a low-noise bias circuit, and implementing a compensation network to prevent oscillation. Additionally, ensure the amplifier is operated within its recommended operating conditions.
Minimize EMI by using a shielded enclosure, keeping the amplifier away from other noise-sensitive components, and using a common-mode choke or ferrite bead to filter out noise. Ensure EMC by following regulatory guidelines and performing radiated and conducted emissions testing.
The SKY66394-11 is a high-reliability device with a mean time to failure (MTTF) of >100,000 hours. It is manufactured using a robust quality control process, and each device is 100% tested to ensure compliance with the datasheet specifications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY66394-11 Overview

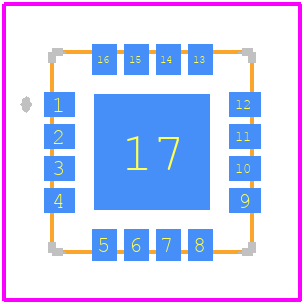

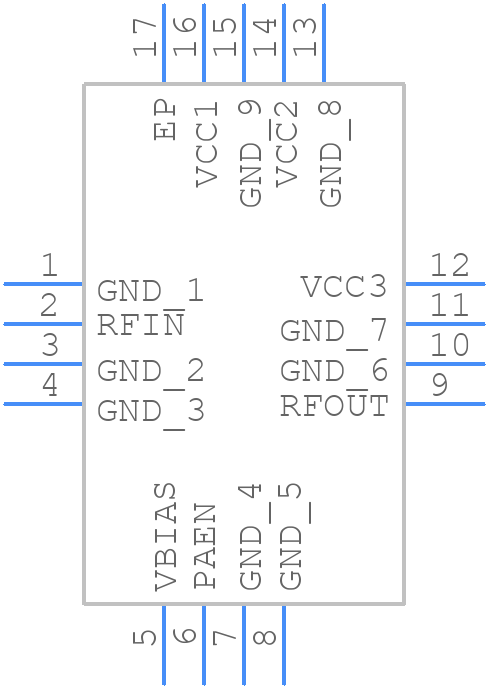

Use the download button to access the SKY66394-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY66,
or try a keyword search, such as RF/Microwave Amplifiers
