Skyworks provides a recommended PCB layout and design guidelines in their application note AN203334, which includes layout recommendations, thermal management, and decoupling capacitor placement.
Optimization of output power and efficiency can be achieved by adjusting the input match, output match, and biasing conditions. Skyworks recommends using their proprietary design tools, such as the Skyworks Advanced Design System (ADS) or third-party tools like AWR Microwave Office, to simulate and optimize the design.
The maximum operating temperature range for the SKY66397-12 is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at higher temperatures, and proper thermal management is crucial to ensure optimal operation.
Yes, the SKY66397-12 can be used in a push-pull configuration to achieve higher output power and improved efficiency. However, this requires careful design and layout considerations to ensure proper phasing and impedance matching.
The recommended input and output impedance matching for the SKY66397-12 is typically 50 ohms. However, the optimal impedance matching may vary depending on the specific application and frequency of operation. Skyworks recommends using their design tools or consulting with their application engineers for customized impedance matching recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY66397-12 Overview

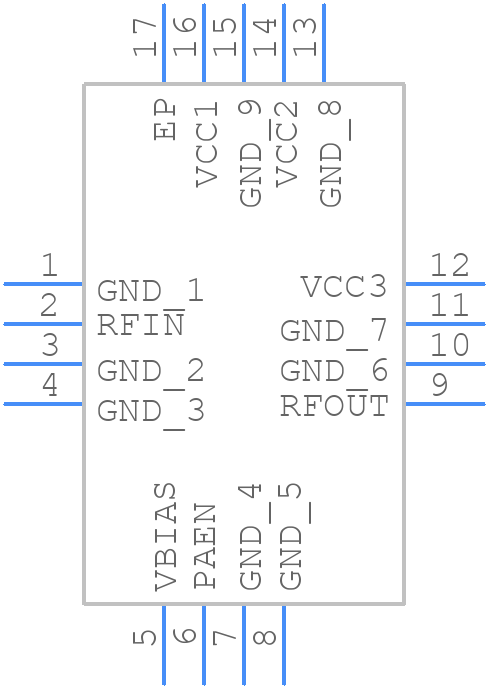

Use the download button to access the SKY66397-12 schematic symbol, PCB footprint, and 3D model.
