Skyworks provides a recommended PCB layout and land pattern in their application note AN203334, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, minimize parasitics, and prevent thermal issues.
The SKY67022-396LF has a thermal pad that must be connected to a thermal ground plane on the PCB to dissipate heat efficiently. Ensure that the thermal ground plane is connected to the system's thermal management system, and follow the recommended thermal design guidelines in the datasheet.
The SKY67022-396LF is rated for operation from -40°C to +105°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and the maximum junction temperature (Tj) should not exceed 150°C.
While the SKY67022-396LF is optimized for Wi-Fi applications, it can be used in other RF applications within its frequency range (2.4 GHz to 2.5 GHz). However, it's crucial to evaluate the device's performance and ensure it meets the specific requirements of your application.
The recommended input and output matching networks for the SKY67022-396LF are provided in the datasheet and application notes. It's essential to follow these guidelines to ensure optimal impedance matching and minimize signal reflections.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY67022-396LF Overview

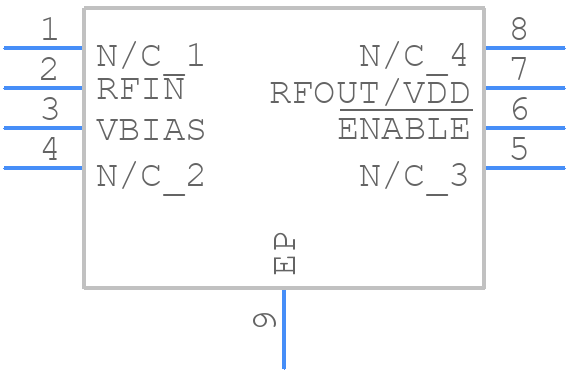

Use the download button to access the SKY67022-396LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY67,
or try a keyword search, such as Cellular Telephone Circuits
