Description:The SKY67101-396LF is GaAs, pHEMT low-noise amplifier (LNA) with an active bias and high linearity performance. The advanced GaAs pHEMT enhancement mode process provides excellent return loss, low noise, and high linearity performance. The internal active bias circuitry provides stable performance over temperature and process variation. The device offers the ability to externally adjust supply current and gain. Supply voltage is applied to the RFOUT/VDD pin through an RF choke inductor. Pin 4 (VIN)
The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing thermal vias under the device. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal impedance guidelines.
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider using a 4-port network analyzer to measure the device's S-parameters and then use a matching network design tool to optimize the component values.
Follow the recommended soldering profile and assembly guidelines provided by Skyworks Solutions Inc. Use a reflow oven with a controlled temperature profile, and ensure the device is handled and stored in an ESD-safe environment.
Use a combination of measurement tools like spectrum analyzers, oscilloscopes, and network analyzers to identify the root cause of the issue. Check the PCB layout, component values, and soldering quality. Consult the datasheet and application notes for troubleshooting guidelines and common pitfalls to avoid.
The SKY67101-396LF has undergone rigorous reliability and qualification tests, including temperature cycling, humidity testing, and electrical overstress testing. Refer to the device's qualification report and reliability data provided by Skyworks Solutions Inc for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY67101-396LF Overview

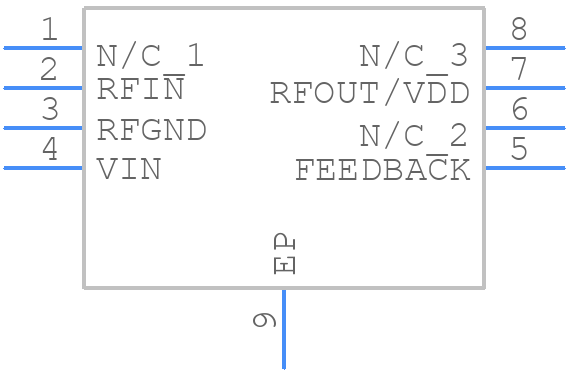

Use the download button to access the SKY67101-396LF schematic symbol, PCB footprint, and 3D model.
