The recommended PCB layout and land pattern can be found in the Skyworks Solutions application note AN302A, which provides guidelines for optimal performance and thermal management.
Skyworks Solutions provides a comprehensive evaluation board and design guide for the SKY67150-396LF, which includes recommended biasing and configuration settings for various applications.
The SKY67150-396LF has a maximum junction temperature of 150°C. Ensure proper heat sinking, use thermal interface materials, and follow the recommended PCB layout guidelines to prevent overheating.
Yes, the SKY67150-396LF is a sensitive device and requires proper ESD protection during handling and assembly. Follow standard ESD precautions, such as using wrist straps and anti-static bags, to prevent damage.
Store the SKY67150-396LF in a dry, cool place, away from direct sunlight and moisture. Handle the device by the body, avoiding touching the pins or electrical connections to prevent damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY67150-396LF Overview

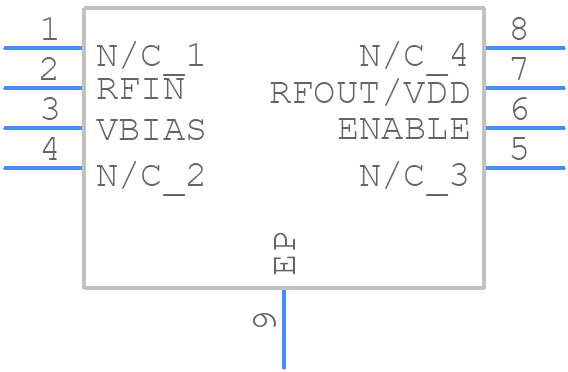

Use the download button to access the SKY67150-396LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY67,
or try a keyword search, such as RF/Microwave Amplifiers
