Skyworks provides a recommended PCB layout and land pattern in their application note (AN20099) for the SKY67181-396LF. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic effects, and reduce electromagnetic interference (EMI).
The SKY67181-396LF has a maximum junction temperature (Tj) of 150°C. To manage thermal performance, ensure good heat dissipation by using a thermal pad on the PCB, and consider using a heat sink or thermal interface material (TIM) if necessary. Additionally, follow the recommended operating conditions and avoid overheating the device.
The input and output matching networks are critical for optimal performance. Skyworks provides a recommended matching network in their application note (AN20099) and evaluation board documentation. The matching network should be designed to provide a good impedance match between the device and the antenna or other components.
To ensure stability and prevent oscillations, follow the recommended operating conditions, and ensure that the input and output impedances are properly matched. Additionally, use a suitable decoupling capacitor and follow the recommended PCB layout guidelines to minimize parasitic effects.
The SKY67181-396LF's behavior under different operating conditions is characterized in the datasheet and application notes. However, for specific use cases, it's recommended to consult with Skyworks' technical support or perform custom characterization to ensure the device meets the required specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY67181-396LF Overview

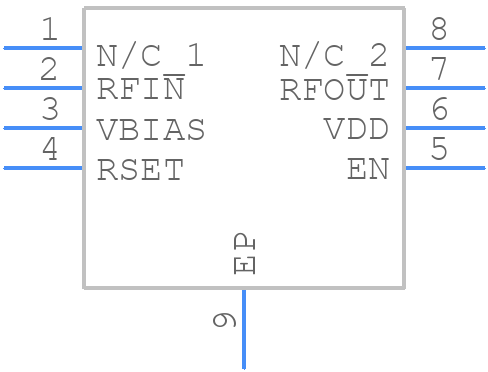

Use the download button to access the SKY67181-396LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY67,
or try a keyword search, such as RF/Microwave Amplifiers
