9.70 X 6.40 MM, 1.10 MM HEIGHT, ROHS COMPLIANT, TSSOP-28
Pin Count:
28
ECCN Code:
5A991.G
HTS Code:
8542.39.00.01
Manufacturer:
Skyworks Solutions Inc
YTEOL:
0
Additional Feature:
IT IS ALSO AVAILABLE IN DIVIDE RATIO 32 TO 543 IN INTEGER-N MODE
Analog IC - Other Type:
PLL FREQUENCY SYNTHESIZER
JESD-30 Code:
R-PDSO-G28
Length:
9.7 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
28
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP28,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Voltage-Max (Vsup):
3.3 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm
SKY72300-21 Frequently Asked Questions (FAQs)
The recommended PCB layout involves keeping the input and output traces as short as possible, using a solid ground plane, and placing thermal vias under the device. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal resistance guidelines.
Use a combination of simulation tools and empirical methods to optimize the input and output matching networks. Consider factors such as frequency, impedance, and power handling. Skyworks provides a reference design and application notes to help with the optimization process.
Follow the recommended soldering profile and assembly techniques outlined in the Skyworks application notes. Use a soldering iron with a temperature range of 250°C to 260°C, and ensure the device is handled by trained personnel to prevent damage.
Consult the Skyworks troubleshooting guide and application notes for common issues. Check for proper thermal management, ensure correct input and output matching, and verify the device is operated within the recommended specifications.
Yes, follow standard ESD precautions when handling the device, such as using an ESD wrist strap, mat, or workstation. Avoid touching the device pins or exposing it to static electricity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY72300-21 Overview

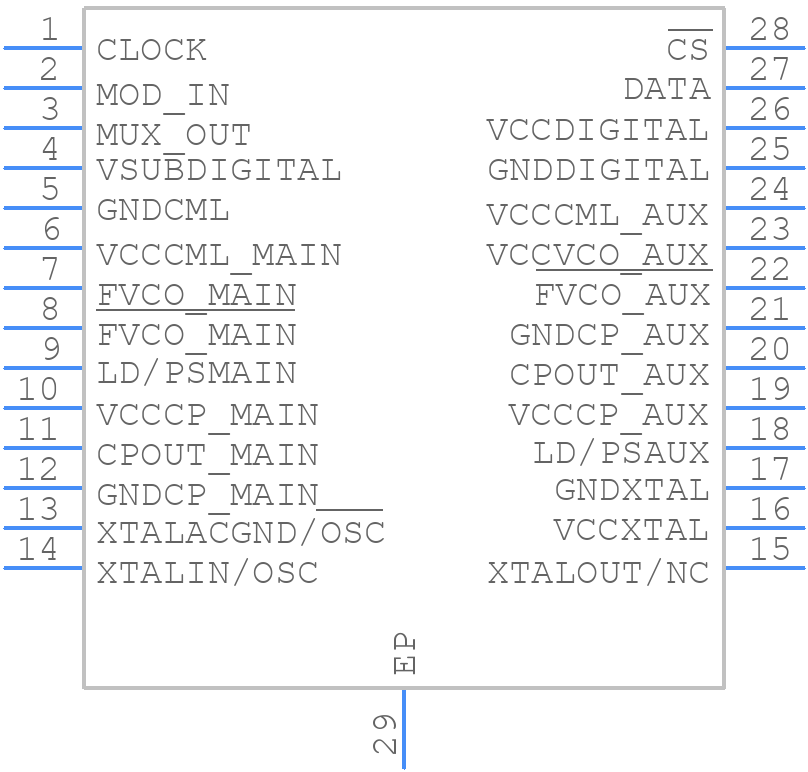

Use the download button to access the SKY72300-21 schematic symbol, PCB footprint, and 3D model.
