Skyworks provides a recommended PCB layout and land pattern in their application note (AN2039) for the SKY85329-11. It's essential to follow these guidelines to ensure optimal performance, minimize parasitic effects, and prevent thermal issues.
Skyworks offers a free online tool, the Skyworks Tuning Tool, which helps designers optimize the input and output matching networks for their specific application. The tool provides a starting point for the design and can be used in conjunction with simulation software like ADS or AWR.
While the datasheet specifies the maximum input power, it's essential to consider the device's thermal limitations. The maximum power handling capability depends on the operating frequency, bias conditions, and thermal management. Skyworks recommends consulting their application notes and thermal modeling tools to determine the maximum power handling capability for a specific application.
The SKY85329-11 requires a specific biasing scheme to operate optimally. Skyworks provides a recommended biasing circuit in their datasheet and application notes. It's crucial to follow these guidelines and ensure the bias voltage and current are within the specified ranges to achieve optimal performance and prevent damage to the device.
The SKY85329-11 is a sensitive device and requires proper ESD protection and handling precautions to prevent damage. Skyworks recommends following standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and ensuring that all equipment and tools are properly grounded.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY85329-11 Overview

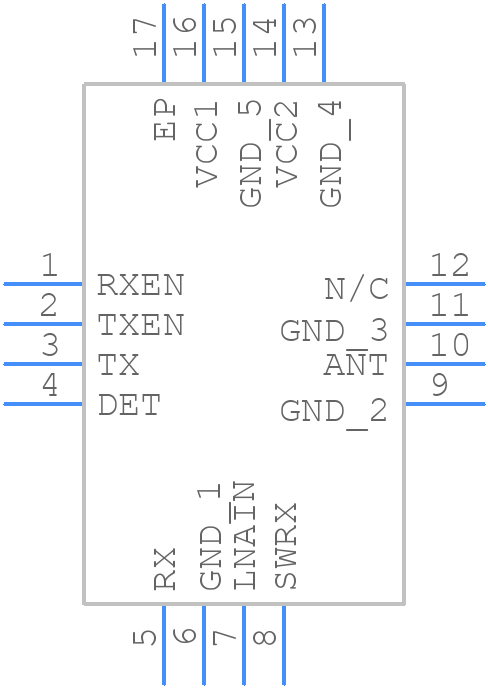

Use the download button to access the SKY85329-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY85,
or try a keyword search, such as Other RF/Microwave Devices
