The recommended PCB layout involves using a 4-layer board with a solid ground plane, and placing the device near the edge of the board to minimize thermal resistance. Thermal management involves using a heat sink or thermal pad to keep the junction temperature below 125°C.
Optimize the input and output matching networks by using a combination of series and shunt inductors, capacitors, and resistors to achieve a conjugate match. Use simulation tools like ADS or AWR to model and optimize the matching networks.
The recommended bias voltage is 3.3V to 5V, and the recommended bias current is 100mA to 200mA. However, the optimal bias settings may vary depending on the specific application and operating conditions.
Ensure the device meets the required linearity and spectral purity specifications by optimizing the bias settings, input power, and output load impedance. Additionally, use filtering and harmonic suppression techniques to minimize spectral regrowth.
The SKY85402-11 is designed to operate in harsh environments, but it's essential to consider factors like temperature, humidity, and vibration. Ensure proper thermal management, use conformal coating, and follow recommended assembly and handling procedures to ensure reliability and ruggedness.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY85402-11 Overview

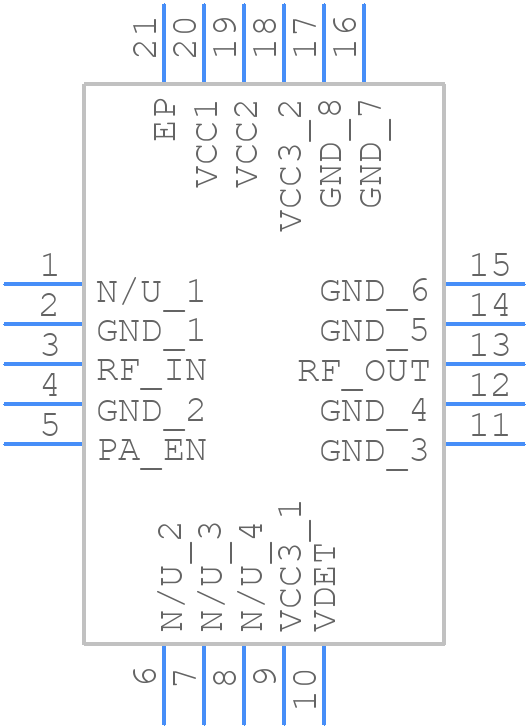

Use the download button to access the SKY85402-11 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY85,
or try a keyword search, such as RF/Microwave Amplifiers
