The recommended PCB layout involves using a 4-layer board with a solid ground plane, and placing the device near the edge of the board to minimize thermal resistance. Thermal management involves using a heat sink or thermal pad to dissipate heat, and ensuring good airflow around the device.
Optimizing the input and output matching networks involves using a combination of simulation tools and empirical methods to achieve the best possible impedance match. This may involve using a Smith chart to visualize the impedance, and adjusting the component values to achieve a good match.
Key considerations for ensuring EMC and reducing EMI include using a shielded enclosure, keeping the device away from other RF sources, using a common-mode choke to reduce common-mode currents, and ensuring good grounding and shielding of the PCB.
Troubleshooting common issues involves using a systematic approach to identify the root cause of the problem. This may involve checking the PCB layout, component values, and soldering quality, as well as using test equipment such as a spectrum analyzer or network analyzer to diagnose the issue.
Skyworks Solutions Inc has a robust quality control process in place, including rigorous testing and inspection procedures, to ensure the device meets its specifications over time. Additionally, the device is designed to meet or exceed industry standards for reliability and quality.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKY85601-21 Overview

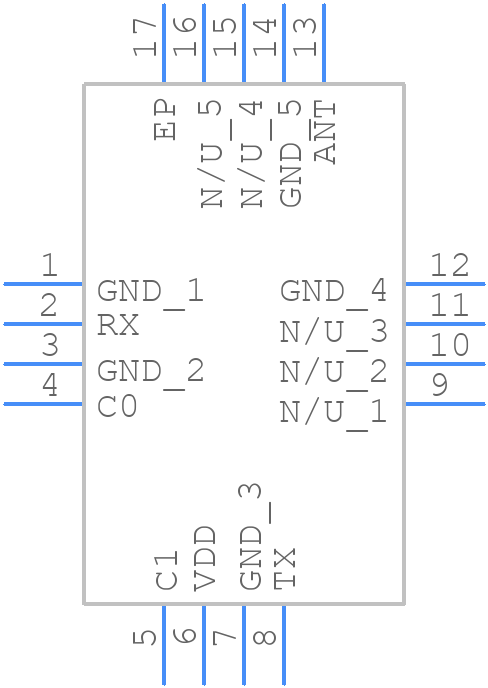

Use the download button to access the SKY85601-21 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKY85,
or try a keyword search, such as Other Telecom ICs
