Skyworks provides a recommended PCB layout and land pattern in their application note AN40334, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
The SKYFR-001400 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Refer to the application note AN40334 for more details.
The SKYFR-001400 is rated for operation from -40°C to +85°C. However, it's essential to consider the derating curves and thermal management to ensure reliable operation within this range.
Skyworks provides a troubleshooting guide in their application note AN40334, which covers common issues and their possible causes. Additionally, ensure that the device is properly soldered, and the PCB layout follows the recommended guidelines.
The recommended input and output matching networks can be found in the application note AN40334. Skyworks also provides a matching network design tool on their website, which can help optimize the performance of the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SKYFR-001400 Overview

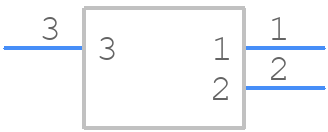

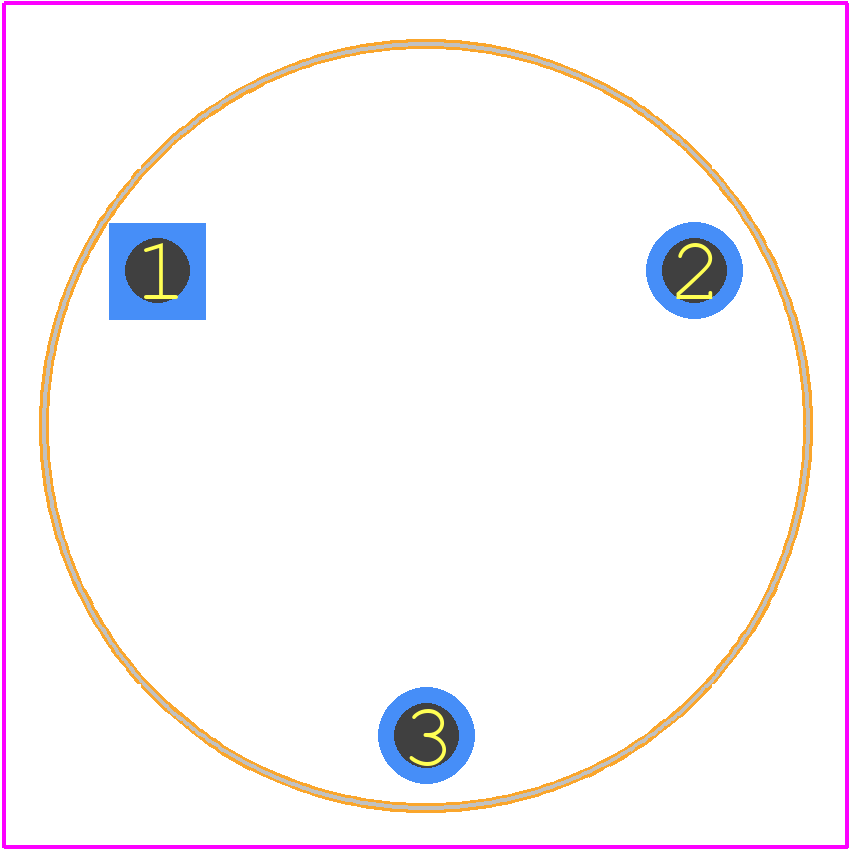

Use the download button to access the SKYFR-001400 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SKYFR,
or try a keyword search, such as RF/Microwave Isolator/Circulators
