Samtec provides a recommended PCB layout and land pattern in their Application Notes (AN-105) and PCB Footprint drawings, which can be found on their website. It's essential to follow these guidelines to ensure proper mating and minimize the risk of damage or electrical issues.
While the SL-116-G-11 is a rugged connector, it's still important to consider the environmental conditions it will be exposed to. Samtec recommends following their guidelines for vibration and shock testing (AN-104) and ensuring the connector is properly secured to the PCB and mated with the correct force to prevent damage or disconnection.
To ensure reliable mating and unmating, follow Samtec's guidelines for connector mating and unmating forces (AN-103). Additionally, ensure the connector is properly cleaned and inspected before mating, and avoid applying excessive force or twisting during mating or unmating.
The SL-116-G-11 has an operating temperature range of -55°C to +125°C. However, it's essential to consider the temperature rating of the specific application and ensure the connector is used within its recommended operating range to prevent damage or degradation.
The SL-116-G-11 is part of Samtec's SEARAY family, which is designed to be compatible with other SEARAY connectors. However, it's essential to verify compatibility with other Samtec connector families before using them together in an application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SL-116-G-11 Overview

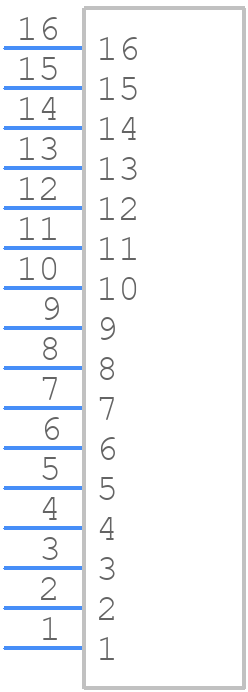

Use the download button to access the SL-116-G-11 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SL-11,
or try a keyword search, such as Headers and Edge Type Connectors
