SL-119-19-T - SAMTEC

Description: 19 Position, .100" Low Profile Single Row Screw Machine Socket Strip

Download SL-119-19-T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SL-119-19-T model

Email notifications will be applied after download.

Send part feedback

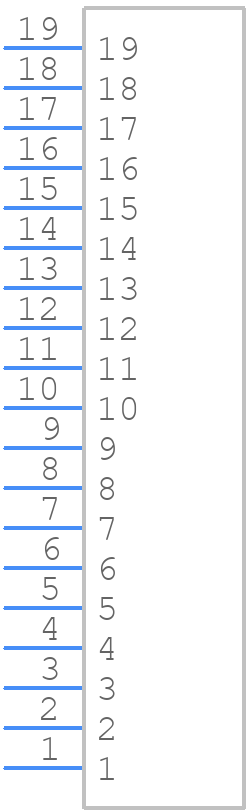

Symbol

SL-119-19-T - SAMTEC - PCB symbol

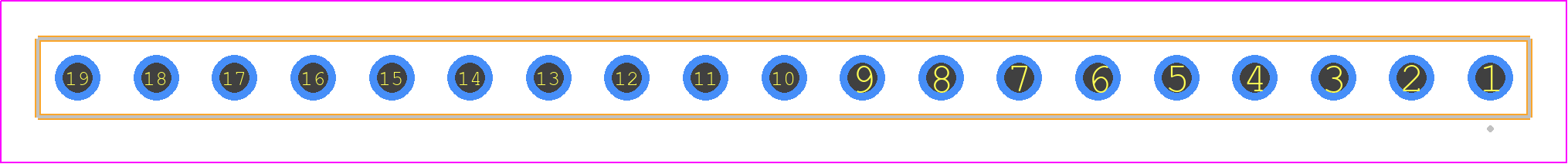

PCB Footprints

SL-119-19-T - SAMTEC PCB footprint - Other - Other - SL-119-XX-YY

Datasheet Download Datasheet
Stock & Prices Price & Stock for SL-119-19-T
Part Number SL-119-19-T
Manufacturer SAMTEC
Pin Count 19
Part Category Connector
Package Category Other
Footprint Name Other - SL-119-XX-YY
Released Date Jun 22, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)
