Samtec provides a recommended PCB layout and land pattern in their Application Notes document (AN-01) and also in the product datasheet. It's essential to follow these guidelines to ensure proper assembly and reliability.
Yes, the SL-120-T-11 is designed to withstand high-vibration and high-shock environments. It meets the IEC 61373 Cat 1, Class B standard for vibration and shock resistance. However, it's crucial to follow proper mounting and assembly procedures to ensure the connector's reliability in such environments.
The SL-120-T-11 has an operating temperature range of -55°C to +125°C. However, it's essential to note that the temperature range may vary depending on the specific application and the materials used in the PCB and surrounding components.
Yes, the SL-120-T-11 is compatible with lead-free soldering processes. Samtec recommends using a soldering temperature of 260°C (max) and a soldering time of 3 seconds (max) to ensure reliable assembly.
The SL-120-T-11 has a mating cycle life of 500 cycles (min) when mated with a Samtec-approved mating connector. However, the actual mating cycle life may vary depending on the specific application, usage, and environmental conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SL-120-T-11 Overview

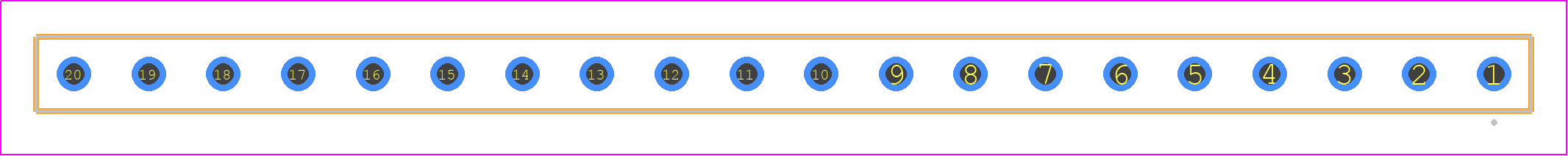

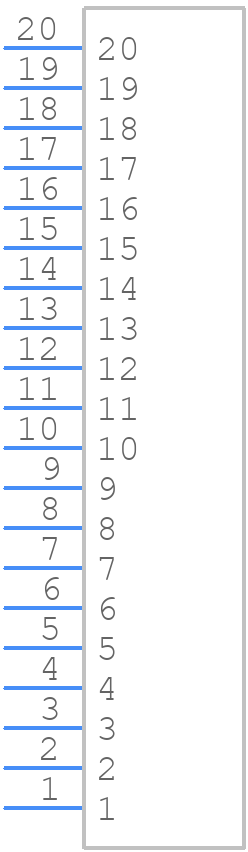

Use the download button to access the SL-120-T-11 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SL-12,
or try a keyword search, such as Headers and Edge Type Connectors
