SL-121-10-S - SAMTEC

Description: 21 Position, .100" Low Profile Single Row Screw Machine Socket Strip

Download SL-121-10-S Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SL-121-10-S model

Email notifications will be applied after download.

Send part feedback

Symbol

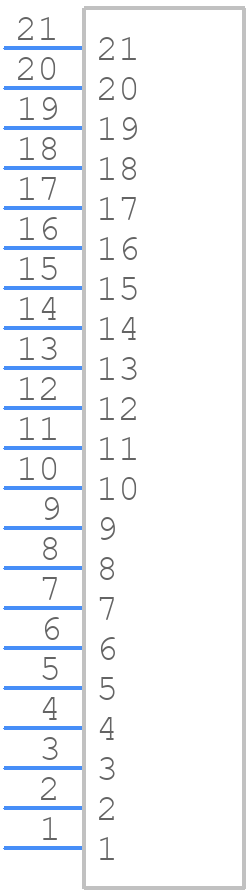

SL-121-10-S - SAMTEC - PCB symbol

PCB Footprints

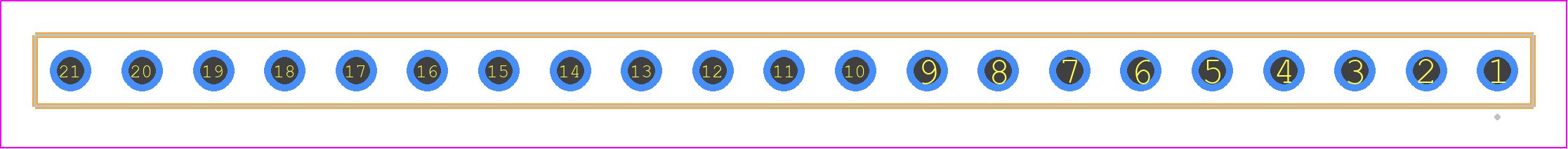

SL-121-10-S - SAMTEC PCB footprint - Other - Other - SL-121-XX-YY

Datasheet Download Datasheet
Stock & Prices Price & Stock for SL-121-10-S
Part Number SL-121-10-S
Manufacturer SAMTEC
Pin Count 21
Part Category Connector
Package Category Other
Footprint Name Other - SL-121-XX-YY
Released Date Jun 22, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SL-121-10-S Details

Manufacturer Part Number:
SL-121-10-S
Manufacturer:
Samtec Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SL-121-10-S Overview

Use the download button to access the SL-121-10-S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SL-12, or try a keyword search, such as Slide Switches
