SL-122-10-S - SAMTEC

Description: 22 Position, .100" Low Profile Single Row Screw Machine Socket Strip

Download SL-122-10-S Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SL-122-10-S model

Email notifications will be applied after download.

Send part feedback

Symbol

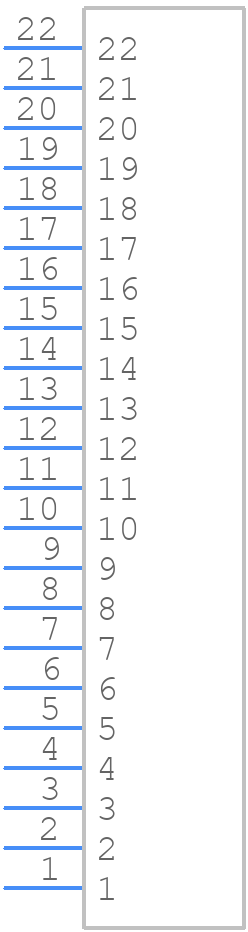

SL-122-10-S - SAMTEC - PCB symbol

PCB Footprints

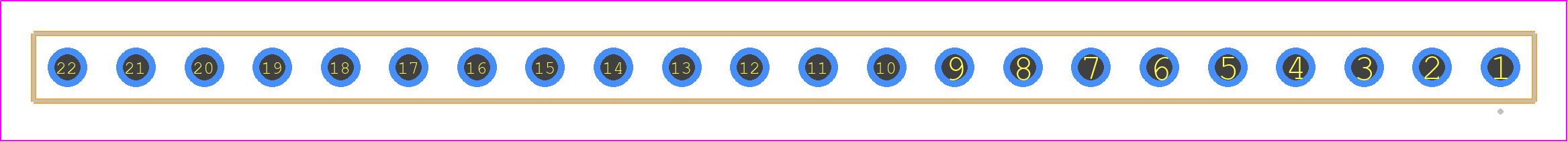

SL-122-10-S - SAMTEC PCB footprint - Other - Other - SL-122-XX-YY

Datasheet Download Datasheet
Stock & Prices Price & Stock for SL-122-10-S
Part Number SL-122-10-S
Manufacturer SAMTEC
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - SL-122-XX-YY
Released Date Jun 22, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
