Samtec provides a recommended PCB layout and land pattern in their Application Notes (AN-105) and PCB Footprint drawings, which can be found on their website. It's essential to follow these guidelines to ensure proper mating and minimize the risk of damage or electrical issues.
While the SL-132-G-11 is a rugged connector, it's still important to consider the environmental conditions it will be exposed to. Samtec recommends following their guidelines for vibration and shock testing (AN-104) and ensuring the connector is properly secured to the PCB and mated with the correct force to prevent damage or disconnection.
To ensure proper mating and unmating, follow Samtec's guidelines for connector handling and mating (AN-103). This includes using the correct mating force, avoiding over-torquing, and ensuring the connector is properly aligned and seated.
The SL-132-G-11 has an operating temperature range of -55°C to +125°C, but it's essential to note that the temperature rating may vary depending on the specific application and environmental conditions. Consult Samtec's datasheet and application notes for more information.
Yes, the SL-132-G-11 is designed to be compatible with other Samtec connectors and adapters. However, it's crucial to ensure the specific connector or adapter is compatible and follows Samtec's guidelines for mating and unmating. Consult Samtec's website or contact their technical support for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SL-132-G-11 Overview

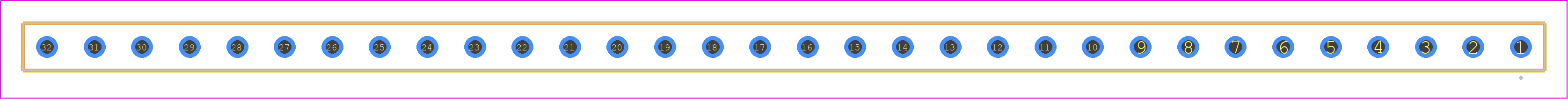

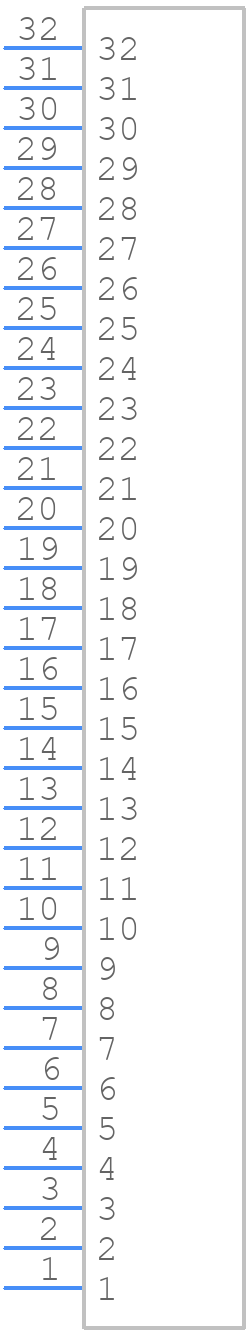

Use the download button to access the SL-132-G-11 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SL-13,
or try a keyword search, such as Headers and Edge Type Connectors
