SL-889/P - Tadiran Batteries

Description: SL-889/P - Button Cell Battery, Lithium, 1/10D, 3.6V, 1Ah, Tadiran Batteries

Download SL-889/P Model

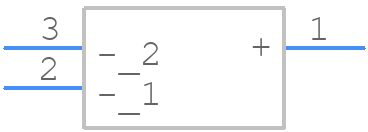

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

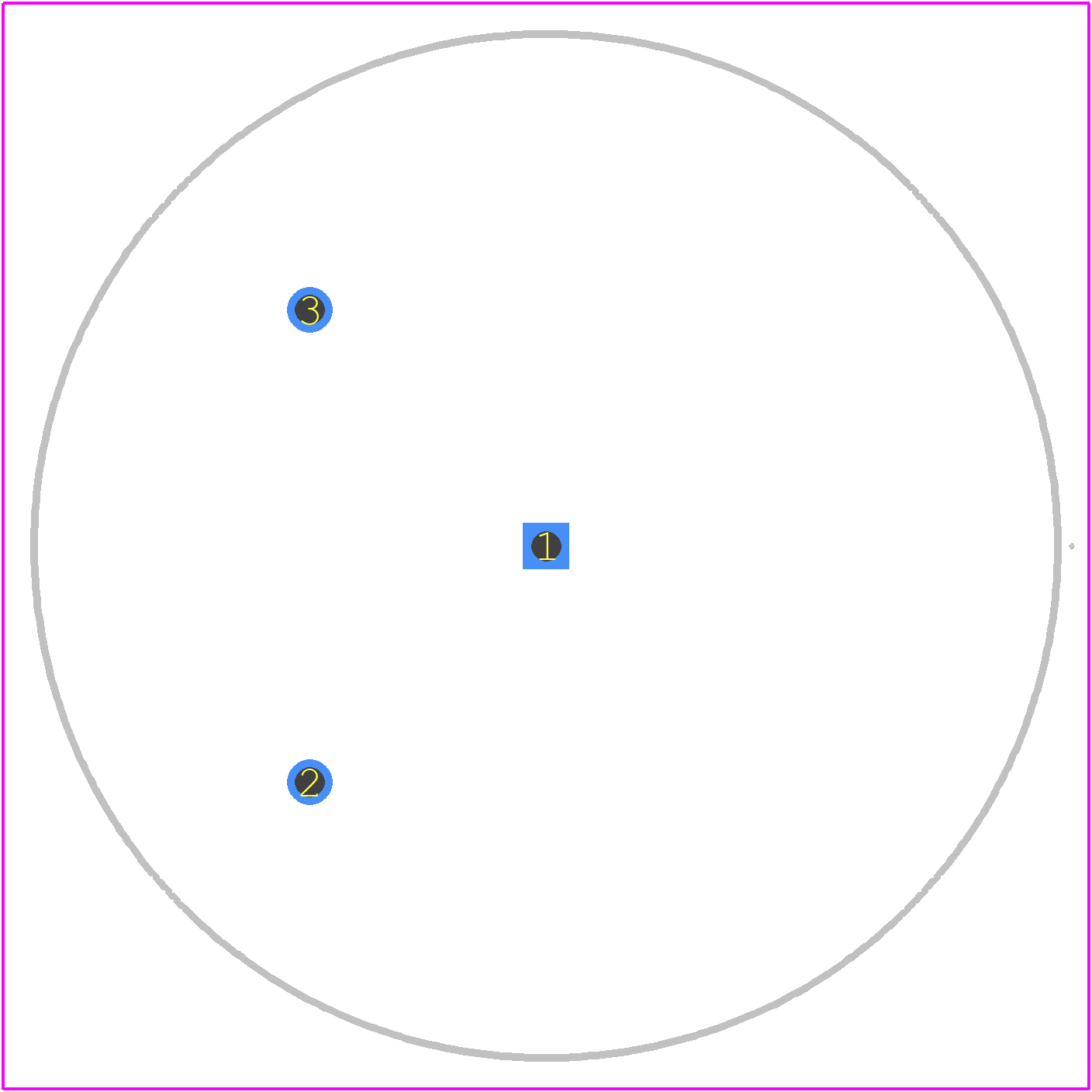

SL-889/P - Tadiran Batteries PCB footprint - Other - Other - SL-889/P-1
click to zoom
3D Models
SL-889/P - Tadiran Batteries  - 3D model - Other - SL-889/P-1
click to zoom

SL-889/P Details

  • Manufacturer Part Number:

    SL-889/P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Israel

  • ECCN Code:

    3A991.J.1

  • HTS Code:

    8506.80.00.00

  • Manufacturer:

    Tadiran Batteries

  • YTEOL:

    8

  • Approvals:

    UL

  • Battery Chemistry:

    LITHIUM-THIONYL CHLORIDE

  • Battery Size:

    1/10D

  • Battery Type:

    PRIMARY

  • Capacity:

    1 Ah

  • Diameter:

    33 mm

  • Height:

    6.2 mm

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Terminal Type:

    LEAD

  • Voltage:

    3.6 V

  • Weight:

    16 g

SL-889/P Frequently Asked Questions (FAQs)

  • The recommended storage temperature for SL-889/P batteries is between 10°C to 30°C (50°F to 86°F) to ensure optimal performance and shelf life.
  • While SL-889/P batteries can operate in high temperatures, it's not recommended to use them above 60°C (140°F) for extended periods, as this can affect their performance and lifespan.
  • Handle SL-889/P batteries with care to avoid mechanical shock, vibration, and extreme temperatures. Store them in a cool, dry place, away from metal objects, and avoid short-circuiting the terminals.
  • Yes, SL-889/P batteries can be used in series or parallel connections, but ensure that the batteries are identical and from the same manufacturing batch to maintain consistent performance and prevent uneven discharge.
  • The recommended charging method for SL-889/P batteries is a constant current-constant voltage (CC-CV) charger with a limited current of 0.1C to 0.5C and a voltage limit of 4.2V per cell.
