A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the layout symmetrical and avoid vias under the device. Use a 10nF decoupling capacitor between VDD and GND, and a 100nF capacitor between VDDA and GND.
Ensure a stable power supply with a voltage range of 1.65V to 3.6V. Use a soft-start circuit to limit the inrush current during power-up. Add a 10uF capacitor between VDD and GND to filter out noise.
The maximum operating frequency is 13.56 MHz, but it can be optimized for specific applications up to 20 MHz with proper PCB design and component selection.
Use a series resonant circuit with a capacitor and inductor to match the antenna impedance. The recommended tuning component values are 10nF for the capacitor and 1.5uH for the inductor.
Use the I2C interface for firmware updates. Ensure the device is in a low-power state during the update process to prevent data corruption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SL3S4021FHKH Overview

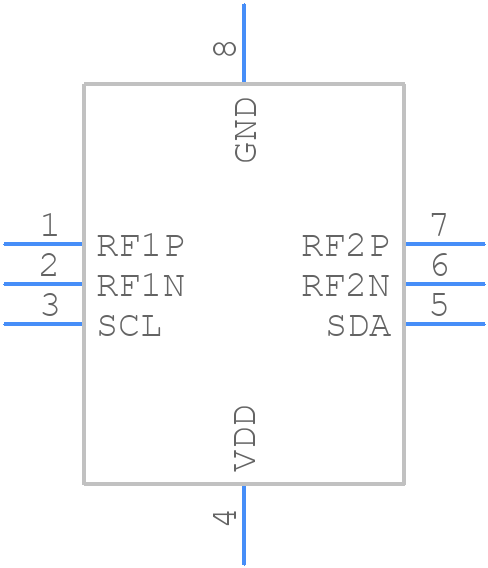

Use the download button to access the SL3S4021FHKH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SL3S4,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About NXP
NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more.
NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
