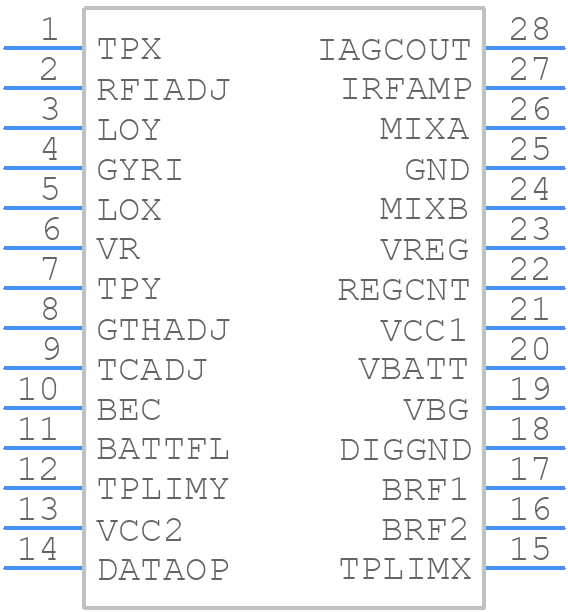

SL6609/KG/NPDE - Microsemi Corporation

SL6609/KG/NPDE Details

• Manufacturer Part Number:

  SL6609/KG/NPDE

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SSOP

• Package Description:

  SSOP,

• Pin Count:

  28

• Reach Compliance Code:

  Unknown

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Microsemi Corporation (now Microchip)

• YTEOL:

  0

• JESD-30 Code:

  R-PDSO-G28

• JESD-609 Code:

  e0

• Length:

  10.2 mm

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -20 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2 mm

• Supply Current-Max:

  1.8 mA

• Supply Voltage-Nom:

  1.3 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Telecom IC Type:

  PAGING RECEIVER

• Temperature Grade:

  OTHER

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  5.3 mm
