Allegro provides a recommended PCB layout in their application note AN296050, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and thermal dissipation.
The output current of the SLA5064 can be calculated using the formula: Iout = (Vin - Vout) / Rds(on), where Vin is the input voltage, Vout is the output voltage, and Rds(on) is the on-state resistance of the internal FET. The Rds(on) value can be found in the datasheet.
The SLA5064 has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (Tj) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
The SLA5064 has a maximum input voltage rating of 60V, and it's not recommended to use it in applications exceeding this voltage. If you need to handle higher voltages, consider using a different device or adding external voltage protection circuitry.
The SLA5064 has a built-in overcurrent protection feature that limits the output current to a maximum value. To implement overcurrent protection, you can use an external sense resistor (Rs) and a comparator to monitor the output current. When the current exceeds the set limit, the comparator can trigger a shutdown signal to the SLA5064.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLA5064 Overview

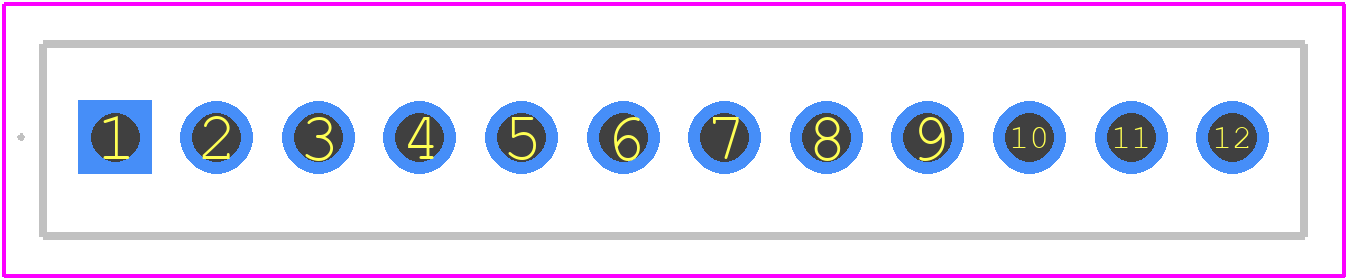

Use the download button to access the SLA5064 schematic symbol, PCB footprint, and 3D model.
