SLB9670VQ20FW785XUMA1 - Infineon

Description: Security ICs / Authentication ICs TPM

Download SLB9670VQ20FW785XUMA1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

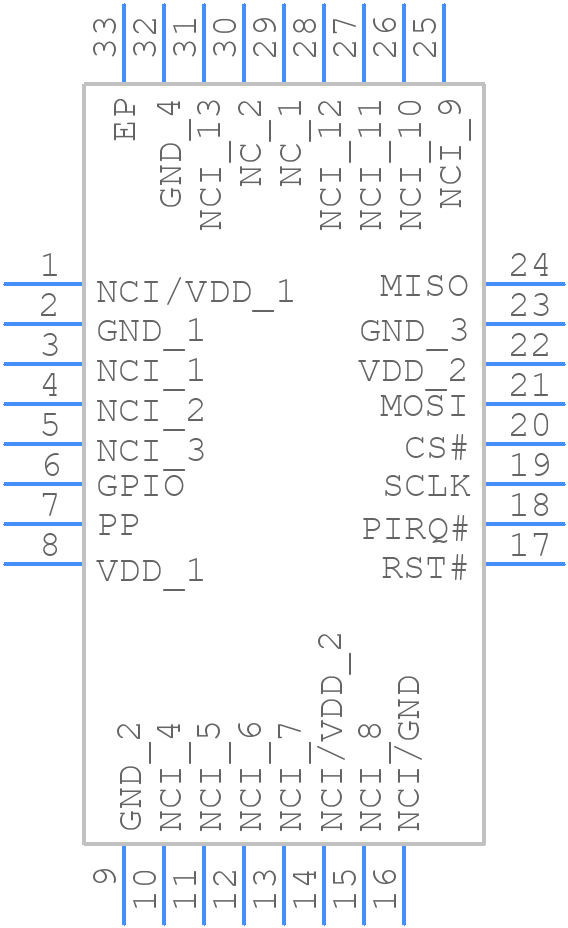

SLB9670VQ20FW785XUMA1 - Infineon - PCB symbol
click to zoom
PCB Footprints
SLB9670VQ20FW785XUMA1 - Infineon PCB footprint - Other - Other - SLB9670VQ20FW785XUMA1-1
click to zoom
3D Models
SLB9670VQ20FW785XUMA1 - Infineon - 3D model - Other - SLB9670VQ20FW785XUMA1-1
click to zoom

SLB9670VQ20FW785XUMA1 Details

  • Manufacturer Part Number:

    SLB9670VQ20FW785XUMA1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HVQCCN, LCC32,.2SQ,20

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    ALSO AVAILABLE WITH 3.3V NOM SUPPLY

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    1.95 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR

SLB9670VQ20FW785XUMA1 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout guide in their application note AN215, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • Infineon provides a configuration tool, the 'SLB9670 Configurator', which allows users to generate a configuration file tailored to their specific use case. The tool can be downloaded from the Infineon website.
  • The SLB9670VQ20FW785XUMA1 has a thermal pad that must be connected to a heat sink or a thermal interface material to ensure proper heat dissipation. The datasheet provides thermal resistance values and recommended thermal management strategies.
  • Infineon provides a troubleshooting guide in their application note AN217, which covers common issues and their solutions. Additionally, the SLB9670VQ20FW785XUMA1 has built-in diagnostic capabilities that can be accessed through the I2C interface.
  • The SLB9670VQ20FW785XUMA1 has built-in security features such as secure boot, secure firmware updates, and encryption. Infineon provides a security guide that outlines the security features and best practices for secure implementation.
