SLF12555T-6R0N3R6-PF - TDK

Description: TDK Shielded Wire-wound SMD Inductor with a Ferrite Core, 6 μH ±30% 4.9A Idc

Download SLF12555T-6R0N3R6-PF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLF12555T-6R0N3R6-PF - TDK - PCB symbol
click to zoom
PCB Footprints

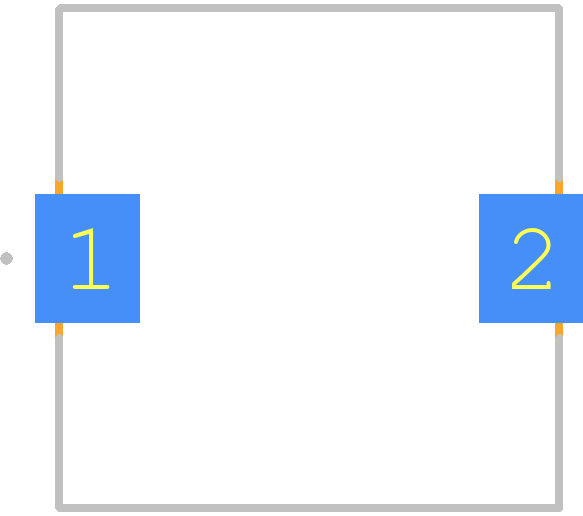

SLF12555T-6R0N3R6-PF - TDK PCB footprint - Other - Other - SLF12555
click to zoom
3D Models
SLF12555T-6R0N3R6-PF - TDK - 3D model - Other - SLF12555
click to zoom

SLF12555T-6R0N3R6-PF Details

  • Manufacturer Part Number:

    SLF12555T-6R0N3R6-PF

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Case/Size Code:

    4949

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.0164 Ω

  • Inductance-Nom (L):

    6 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    5.5 mm

  • Package Length:

    12.5 mm

  • Package Style:

    SMT

  • Package Width:

    12.5 mm

  • Packing Method:

    TR, Embossed Plastic, 13 Inch

  • Rated Current-Max:

    4.9 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Special Feature:

    DC RESISTANCE MEASURED AT: 20%

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.001 MHz

  • Tolerance:

    30%

SLF12555T-6R0N3R6-PF Frequently Asked Questions (FAQs)

  • TDK recommends a land pattern with a minimum pad size of 2.5mm x 1.5mm and a non-solder mask defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
  • Yes, SLF12555T-6R0N3R6-PF is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF). However, it's essential to consider the component's parasitic inductance and capacitance in the circuit design.
  • The operating temperature range of -55°C to +125°C may affect the component's capacitance, ESR, and SRF. TDK recommends consulting the datasheet's temperature derating charts to ensure the component meets the required specifications in the target application.
  • Yes, SLF12555T-6R0N3R6-PF is compatible with lead-free soldering processes, such as SAC305 (Sn-Ag-Cu) and is RoHS compliant.
  • TDK recommends storing SLF12555T-6R0N3R6-PF in a dry, cool place with a relative humidity of 60% or less and a temperature range of 5°C to 30°C to prevent moisture absorption and damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SLF12555T-6R0N3R6-PF Overview

Use the download button to access the SLF12555T-6R0N3R6-PF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLF12, or try a keyword search, such as Fixed Inductors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
