Description:Renesas' Zero Static Power ASM (Asynchronous State Machine) is fault tolerant and operates continuously over a wide voltage range with very low latency. The SLG46880-A provides a small, low power component for commonly used mixed-signal functions. The user creates their circuit design by programming the one time Non-Volatile Memory (NVM) to configure the interconnect logic, the IO Pins and the macrocells of the SLG46880-A. This highly versatile device allows a wide variety of mixed-signal functions to be de
Renesas provides a recommended PCB layout guide in the SLG46880-AP application note (Document Number: R01DS0243EJ0100). It's essential to follow this guide to ensure optimal performance, especially for the analog and power sections.
The SLG46880-AP has multiple power modes, including low-power mode. To configure it, refer to the 'Power Management' section in the datasheet. You'll need to set the appropriate registers and configure the power management pins (PWRDN and PWRSV) according to your application's requirements.
The SLG46880-AP has an operating temperature range of -40°C to +125°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Always check the datasheet and application notes for specific temperature-related guidelines.
The SLG46880-AP is designed to operate in a variety of environments, including those with high vibration. However, it's crucial to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress. Renesas recommends following the recommended PCB layout and assembly guidelines to minimize the risk of mechanical failure.
For ADC-related issues, start by checking the ADC configuration registers and ensure that the ADC is properly enabled. Verify that the analog input signals are within the specified voltage range and that the ADC clock frequency is set correctly. If issues persist, refer to the SLG46880-AP's application notes and datasheet for troubleshooting guidelines and ADC-specific errata.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG46880-AP Overview

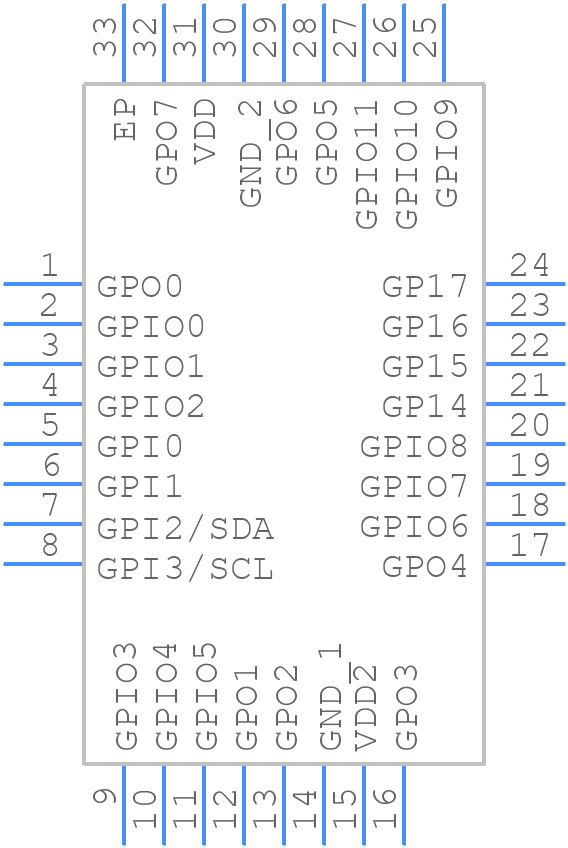

Use the download button to access the SLG46880-AP schematic symbol, PCB footprint, and 3D model.
