A good PCB layout for the SLG55021-200010V involves keeping the input and output traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the SLG55021-200010V, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device. Also, ensure that the power and ground pins are connected to a solid power and ground plane on the PCB.
The SLG55021-200010V is rated for operation from -40°C to 125°C, but it's recommended to operate it within a temperature range of 0°C to 85°C for optimal performance and reliability.
To troubleshoot issues with the SLG55021-200010V, start by checking the power supply and decoupling, then verify the input and output signals using an oscilloscope. Check for any signs of overheating, and ensure that the device is properly soldered and connected to the PCB.
The SLG55021-200010V is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing and validation. It's recommended to consult with Silego Technology Inc or a qualified reliability engineer to determine the suitability of the device for such applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SLG55021-200010V Overview

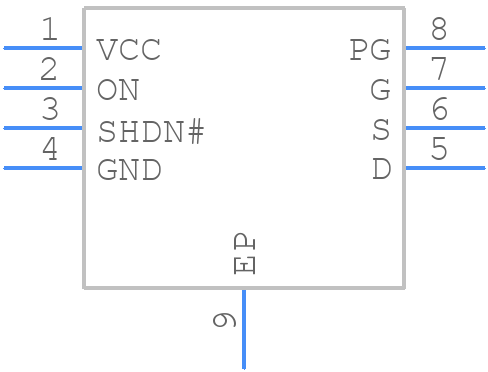

Use the download button to access the SLG55021-200010V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLG55,
or try a keyword search, such as MOSFET Drivers
